RTR500BW Wireless Base Unit for Data Loggers – LAN & WiFi Monitoring

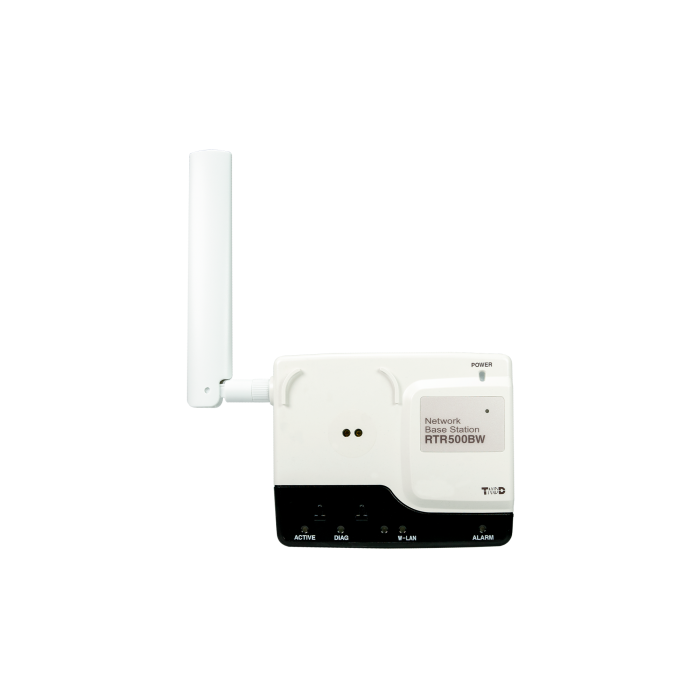

RTR500BW Wireless Base Unit
Centralized Data Collection and Cloud Connectivity for Wireless Data Loggers
The T&D RTR500BW is a wireless base unit designed to collect, store and transmit data from compatible RTR-500 / RTR500B series remote data loggers. It enables centralized monitoring of temperature, humidity and other recorded parameters by automatically gathering data via radio communication and forwarding it through wired LAN or wireless LAN networks.
This base unit is well-suited for laboratories, pharmaceutical storage, cold chain monitoring, warehouses, clean rooms and industrial environments where continuous data access and remote monitoring are required. By eliminating the need for manual data retrieval, the RTR500BW helps streamline compliance, quality control and environmental tracking processes.
Wireless Data Collection from Remote Loggers
The RTR500BW communicates with registered remote units using short-range wireless communication, allowing it to collect recorded data without physical access to each logger. This is particularly useful for installations across multiple rooms, storage zones or controlled environments.
LAN and Wireless LAN Connectivity
The base unit supports both wired LAN and wireless LAN connections, enabling flexible installation depending on the site infrastructure. Once connected, the system can automatically upload collected data to T&D WebStorage Service or a local network environment.
Automatic Data Upload and Remote Access
Collected data can be automatically transmitted at scheduled intervals, allowing users to access current and historical readings remotely via PC or mobile device. This feature helps reduce manual intervention while ensuring data is consistently recorded and available.
Warning Monitoring and Alerts
The RTR500BW can monitor recorded values against preset limits and generate warnings when thresholds are exceeded. This allows for quicker response to temperature or environmental deviations in sensitive applications.
Expandable Monitoring System
The base unit can manage multiple remote data loggers, making it suitable for monitoring several points within a facility. Users can scale their system by adding compatible loggers as monitoring needs grow.
Typical Applications
Common applications include cold storage monitoring, laboratory environmental control, pharmaceutical inventory tracking, food storage quality control, clean room monitoring, incubator supervision and warehouse condition tracking.
Q&A
What is the RTR500BW used for?
The RTR500BW is used as a central base unit to collect and transmit data from compatible wireless data loggers, enabling remote monitoring and automated data management.How does the RTR500BW communicate with data loggers?
It uses short-range wireless communication to collect data from registered RTR-500 / RTR500B series loggers installed in different locations.Can the RTR500BW connect to a network?
Yes. It supports both wired LAN and wireless LAN connections, allowing data to be uploaded automatically to cloud services or internal networks.Does the RTR500BW support alerts?
Yes. It can monitor readings against preset limits and trigger warnings when values exceed defined thresholds.Can one RTR500BW manage multiple loggers?
Yes. The system is designed to handle multiple remote units, making it suitable for multi-point environmental monitoring across facilities.Specifications
| Model | RTR500BW |
|---|---|
| Product Type | Network Base Station / Wireless Data Collector |
| Compatible Remote Units | RTR500B Series: RTR501B, RTR502B, RTR503B, RTR505B, RTR507B, including L Type RTR-500 Series: RTR-574, RTR-576, including S Type RTR-600 Series: RTR-602S, RTR-602L, RTR-602ES, RTR-602EL |
| Compatible Repeaters | RTR500BC |
| Maximum Remote Unit Registrations | 50 units |
| Maximum Repeater Registrations | 10 units x 4 groups |
| Short Range Wireless Communication - US Model | Frequency range: 902 to 928 MHz RF power: 7 mW Transmission range: approximately 150 m / 500 ft if unobstructed and direct |
| Short Range Wireless Communication - EU Model | Frequency range: 869.7 to 870 MHz RF power: 5 mW Transmission range: approximately 150 m if unobstructed and direct |
| Wired LAN | RJ45 connector, 100 Base-TX / 10 Base-T |
| Wireless LAN | IEEE 802.11 a/b/g/n Security: WEP 128-bit, WPA-PSK TKIP, WPA2-PSK AES |
| Bluetooth | Bluetooth 4.2, Bluetooth Low Energy, for settings |
| USB | USB 2.0, Mini-B connector, for settings |
| Optical Communication | Proprietary protocol |
| Data Download Time | Approximately 2 minutes for 16,000 readings via wireless communication Add approximately 30 seconds for each repeater used |
| External Output Terminal | PhotoMOS relay output |
| External Output Rating | OFF-state voltage: AC/DC 50 V or less ON-state current: 0.1 A or less ON-state resistance: 35 Ω |
| Communication Protocols | HTTP, HTTPS, FTP, SNTP, DHCP, DNS |
| Power Supply | AC adaptor AD-05A4 or AD-05C1 PoE IEEE 802.3af |
| Dimensions | H 83 mm x W 102 mm x D 28 mm, excluding antenna |
| Antenna Length | 115 mm |
| Weight | Approximately 130 g |
| Operating Temperature | -10 to 60°C |
| Operating Humidity | 90%RH or less, without condensation |
| Included Items | Antenna CSR-0011, USB Mini-B cable US-15C, AC adaptor AD-05A4 or AD-05C1, registration code label, manual set with warranty |
| Notes | RTR-500 Series and RTR-600 Series US Model do not have Bluetooth capability. US and EU models in the RTR500B Series cannot be used together because they have different wireless specifications. Transmission range between RTR500BW and RTR-600 Series loggers is approximately 50 m. Communication via proxy is not supported. |
| Price | $USD 519.00 |
|---|
