Phase II UTG-1500 Digital Ultrasonic Thickness Meter for Corrosion and Wall Thickness Inspection

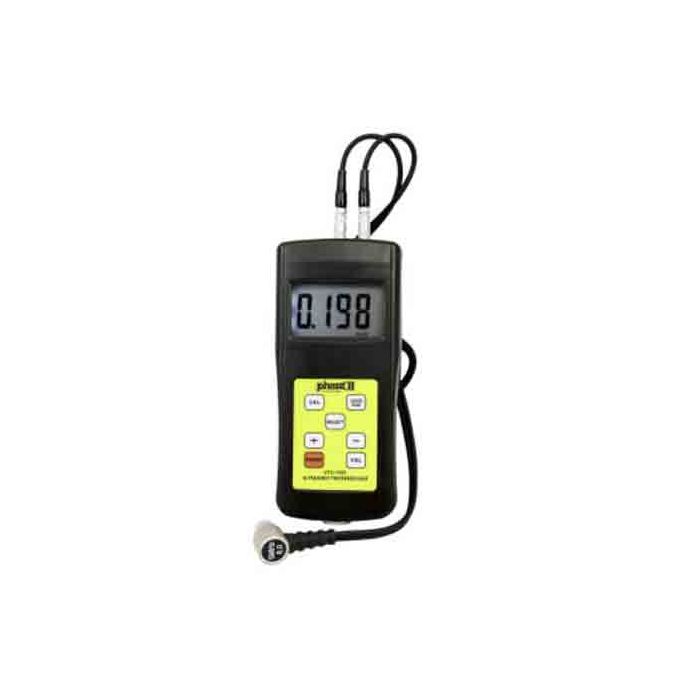

The new PHASE II UTG-1500 Handheld Ultrasonic Thickness Gauge

Accurate thickness measurements for metals, plastics, and more

The UTG-1500 is a microprocessor-controlled ultrasonic thickness gauge designed for precise measurement of metallic and non-metallic materials such as aluminum, titanium, plastics, ceramics, and glass. Its handheld design allows for easy operation on raw materials, components, and assembled machinery, including pipes and pressure vessels prone to corrosion or erosion.

The Basic Touch & Read Ultrasonic Thickness Gauge is widely used by maintenance technicians, NDT inspectors, and manufacturing quality control teams to measure the thickness of materials such as steel, aluminum, plastics, ceramics, and glass without damaging the part. Ultrasonic thickness gauges operate by sending high-frequency sound waves through a material and measuring the time required for the echo to return, allowing the instrument to calculate the material thickness accurately, a principle explained in industrial NDT resources such as industry guidance on ultrasonic thickness gauge applications.

Professionals value handheld ultrasonic gauges because they allow technicians to measure wall thickness from only one accessible side of a component, making them ideal for inspecting pipes, pressure vessels, and structural parts for corrosion or erosion damage. Portable models are widely used in industries including petrochemical processing, aerospace, manufacturing, and construction to verify material thickness and maintain safety and quality control in critical equipment and infrastructure.

Simple Calibration and Use

After a quick calibration to a known thickness or sound velocity, the UTG-1500 delivers accurate readings in inches or millimeters, making it extremely easy to use for both seasoned technicians and new operators.

Phase II Ultrasonic thickness gauge UTG 1500 - Ultrasonic thickness gauge Revised

Industry Applications and Advantages

Widely used in industries such as aerospace, automotive, marine, and manufacturing, ultrasonic thickness gauges allow non-destructive testing (NDT) without access to both sides of the material. The UTG-1500 is praised for its reliability, portability, and ability to measure a range of materials with a common accuracy of 0.001". Compared to competitors, it offers durable construction, optional transducers for varied applications, and advanced memory and data output capabilities.

How It Works

The gauge measures thickness by sending an ultrasonic pulse through the material, capturing the reflected sound, and calculating thickness based on the known sound velocity. Standard 5MHz piezoelectric transducers are included, with optional transducers available for specialized applications. A couplant, typically propylene glycol, is used for direct contact measurements.

Complete Package

The UTG-1500 comes with a durable carry case, 5MHz probe, coupling gel, and an operation manual, providing everything needed for accurate thickness measurement in the field.

Q&A

What materials can the UTG-1500 measure?

It can measure metals like aluminum and titanium, as well as plastics, ceramics, and glass, provided the material has parallel surfaces.

How accurate is the UTG-1500?

The gauge typically provides measurements accurate to 0.001 inches or millimeters after proper calibration.

Do I need special training to use it?

No, the UTG-1500 is easy to use with simple calibration steps and a menu-driven interface suitable for technicians and operators.

Can it store and output data?

Yes, the gauge can retain measurement data and output it to printers, PCs, or handheld devices for reporting and analysis.

Is the UTG-1500 suitable for pipes and pressure vessels?

Yes, it can track thickness reduction due to corrosion or erosion in pipes and pressure vessels without requiring access to both sides.
