DIGITAL DUROMETERS - HPE III SERIES

Bareiss DIGITAL DUROMETERS - HPE III SERIES for Application-Based Model Selection

These models are designed for routine testing, inspection, and quality-control workflows, where the right choice often depends on differences in configuration, range, portability, and application fit.

The HPE was designed for testing on flat-surfaced samples with a thickness of ≥ 6 mm, acc. DIN ISO 48-2

HPE III digital durometer made in Germany by Bareiss is renowned for its highest accuracy and reproducibility, this digital durometer adheres to industry standards such as ASTM D2240, DIN, and ISO 48. Its portable design incorporates unique features that establish it as the most reliable shore durometer available.

While the device is taking a hardness value from the specimen, a temperature sensor mounted on the bottom of the device is taking a temperature value.

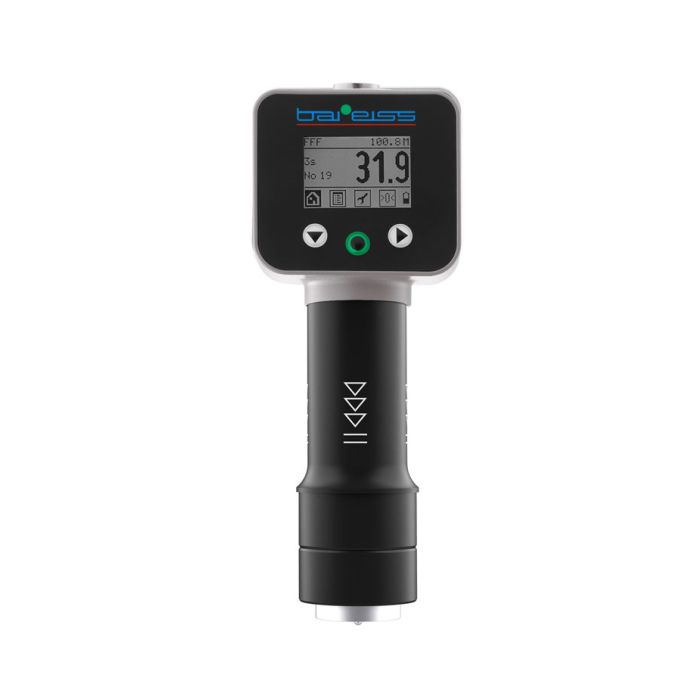

HPE III Handheld Durometer for Shore

The device will have an indication of both values as well as the values of the ambient temperature and humidity. Historical measurements can be displayed for the hardness values and date/time when each measurement was taken.

A Large LCD display for reading comfort, USB connection for data transfer and battery recharge, and a patented handgrip for achieving correct measuring angle and amount of force are all standard features on HPE III.

Related Products

For complementary hardness testing solutions, consider the HPE II Series Durometers for standard Shore testing, the Scout STX Portable Balances for versatile laboratory weighing, or the Explorer Analytical Balances for high-precision measurements in controlled lab environments.

Size and Weight

Method A

Method D

Calibration

ISO/IEC 17025. Bareiss became the very first DAkkS calibration laboratory for Shore & IRHD in Germany in 1996.

A DAkkS-Certificate covers the following mechanical properties of a device:

• Measuring distance
• Force
• Indenter (geometry)

Standards: ISO/IEC 17025

Learn more in the Instruction Manual / Quick Start Guide

Product Q&A

What types of samples can the HPE III test?

The HPE III is designed for flat-surfaced samples with a minimum thickness of 6 mm, and it supports testing according to DIN ISO 48-2 as well as ASTM D2240 standards.

How does the HPE III measure hardness and environmental conditions?

While measuring hardness, the device simultaneously records the sample temperature using an integrated sensor. It also displays ambient temperature and humidity to provide comprehensive testing data.

What are the key features of the HPE III durometer?

Features include high accuracy and reproducibility, large LCD display, USB data transfer and charging, patented handgrip for consistent measuring angle and force, historical measurement tracking, and compliance with international standards.

Is the HPE III portable?

Yes, the HPE III is handheld and portable, allowing testing at different locations while maintaining precision and reliability.

How is the HPE III calibrated?

Calibration is performed according to ISO/IEC 17025, with DAkkS-certified calibration covering measuring distance, force, and indenter geometry.

What kinds of users typically benefit from this product line?

Mostly organizations involved in rubber, elastomer, plastics, coatings, and metal quality control where buyers need to compare scale type, probe configuration, load method, and portability across related models.
