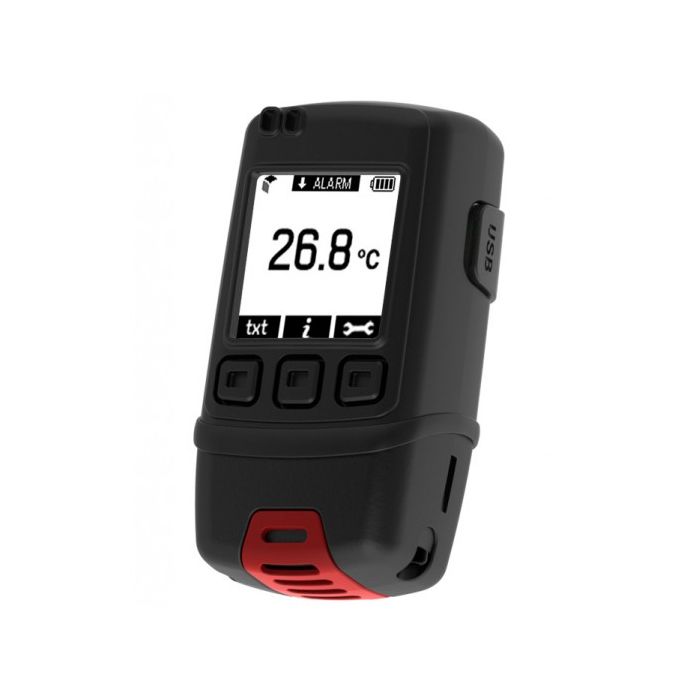

Lascar EasyLog Temperature Data Loggers
The EL-GFX-1 standalone USB data logger measures and stores up to 251,928 temperature readings over a -30 to +80ºC (22 to +176ºF) range and at a resolution of 0.1ºC.
Using the Windows control software (available as a free-download from www.easylogusb.com),users can quickly set up the data logger and view downloaded data by connecting the device to the PC’s USB port using the supplied cable.
The data logger features a high-contrast graphic LCD and three-input buttons. This allows users to start, stop and restart the data logger using on-screen menus. This menu also provides real-time analysis of data either as a data summary (showing highest & lowest readings and alarm conditions) or as a graph that updates as new data is added. Multiple data logging sessions can be stored on the device ready for upload to a PC at a later date.
The data logger’s robust design provides IP-67 waterproof protection and the two replaceable ½AA batteries typically allow logging for up to one year.
Features
- Rugged and robust IP67 construction
- -30 to +80°C (-22 to +176°F) measurement range
- Logging rates between 10 seconds and 12 hours
- Stores over 250,000 readings
- On screen menu and graphing to start, stop, review and restart the logger in the field
- Micro USB interface for PC based set-up and data download
- Immediate, delayed, push-button or temperature triggered start mode
- User-programmable alarm thresholds
- Graphic LCD shows real-time readings, graph and current status
- User set audible alarm
- Highly visible confidence/alarm LEDs
- Supplied with user replaceable ½ AA batteries
EL-WIN-USB - CONTROL SOFTWARE
Lascar’s Easylog USB control software is available to download from www.easylogusb.com. Easy to install and use, the control software runs under Windows XP, Vista and Windows 7. The software is used to set-up the data logger as well as download, graph and export data to Excel. Each stored logging session is saved as a separate file.
The software allows the following parameters to be configured:
- Logger name
- Measurement parameter (ºC or ºF)
- Logging Rate (user-selectable between 10 seconds and 12 hours)
- High and low temperature alarms
- Immediate, delayed, push-button or temperature triggered start mode
- Disable or enable LEDs and sounder with delayed activation
- Display and backlight behaviour after button press
Menu Button Functions and Led Screen Indication
Battery Replacement
We recommend that you replace the batteries every 12 months, or prior to logging critical data.
The EL-GFX-1 does not lose its stored readings when the batteries are discharged or when the batteries are replaced; however, the data logging process will be stopped. If the batteries are changed within a 2 minute window the EL-GFX-1 will retain its settings (internal clock and logging mode). This will allow logging to be restarted without additional connection to a PC via USB.
Only use 2 x 3.6V ½AA lithium batteries. Do not mix battery types and do not mix new and old batteries. Before replacing the batteries, unplug the EL-GFX-1 from the PC.
WARNING
Handle lithium batteries carefully, observe warnings on battery casing. Dispose of in accordance with local regulations.
Specifications
| Model | EL-GFX-1 |
|---|---|
| Product Type | Standalone USB Temperature Data Logger with Display |
| Measurement Range | -30 to +80°C (-22 to +176°F) |
| Accuracy | ±0.45°C typical (5 to 60°C) ±0.55°C typical (-20 to +80°C) |
| Resolution | 0.01°C (internal resolution), display resolution 0.1°C |
| Memory Capacity | 252,928 readings |
| Logging Interval | User selectable from 10 seconds to 12 hours |
| Start Modes | Immediate start, delayed start, or push-button start |
| Alarm Thresholds | User programmable high and low limits |
| Display | High contrast LCD with backlight Shows current, maximum and minimum readings, alarm status |
| Data Interface | USB 2.0 (integrated connector, no cable required) |
| Software | Lascar EasyLog software (Windows compatible) PDF, CSV and graph export |
| Battery Type | 1 x 1/2 AA Lithium battery (replaceable) |
| Battery Life | Up to 3 years (depending on logging rate and usage) |
| Protection Rating | IP67 (dust tight and protected against temporary immersion) |
| Operating Temperature | -30 to +80°C |
| Dimensions | 103 mm x 43 mm x 20 mm |
| Weight | Approximately 90 g |
| Compliance | CE, RoHS compliant |
| Included Items | Battery installed, wall mount bracket, quick start guide |
| Typical Applications | Cold chain monitoring, pharmaceutical storage, food storage, laboratory temperature tracking, transport validation |
| Price | $USD 188.00 |
|---|
