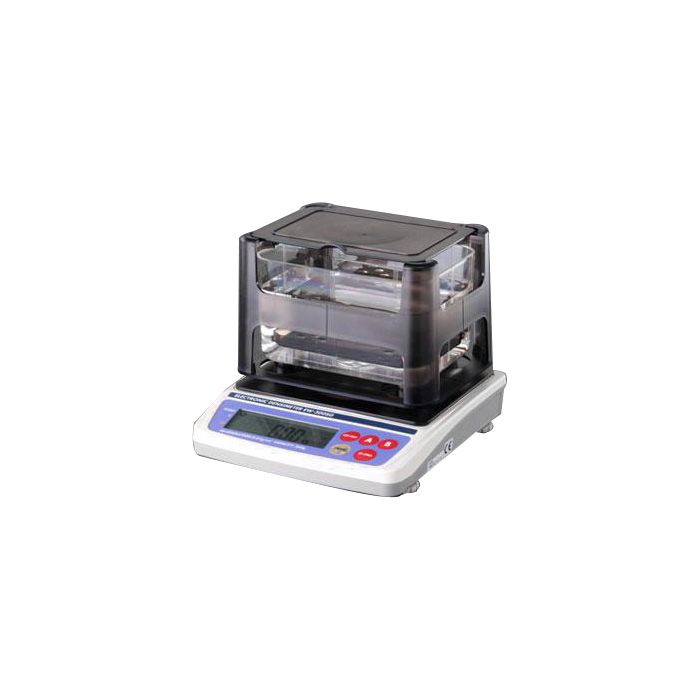

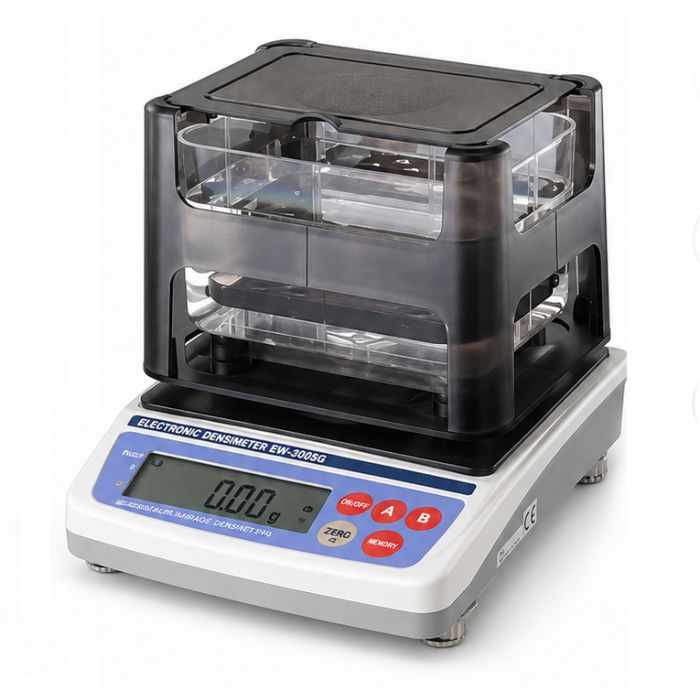

A&D ALEW300SG Electronic Densimeter for Density and Specific Gravity Measurement in Liquids and Solids (300 g Capacity)

Electronic Densimeter

Fast, Simple Density Testing for Production and Quality Control

The Alfa Mirage EW-300SG Electronic Densimeter is designed for rapid and repeatable specific gravity measurements of floating materials such as urethane, rubber, plastics, sponge and wood. By combining hydrostatic density measurement with a simple operating procedure, it enables laboratories and production facilities to obtain accurate density values in approximately 10 seconds without lengthy calculations or complex preparation.

Manufactured in Japan, the EW-300SG is particularly well suited for routine quality control where large numbers of samples must be inspected quickly. Its compact footprint, intuitive operation and integrated RS-232C interface make it an excellent solution for manufacturing environments as well as laboratory testing.

Ideal for Production Line Density Verification

Unlike high-end laboratory densimeters intended for research applications, the EW-300SG focuses on speed and ease of use. Operators simply immerse the sample in the measuring liquid and the instrument automatically calculates specific gravity and volume. This allows manufacturers to rapidly verify material consistency while minimizing operator influence on the results.

Because measurements are completed in about 10 seconds, the instrument is especially valuable for production-line inspection, incoming material verification and routine quality assurance programs.

Optimized for Floating Materials

The EW-300SG has been specifically developed for lightweight materials that naturally float in water. Typical applications include urethane foam, sponge, rubber compounds, plastics and wood. It can also determine density changes during production, helping manufacturers maintain consistent material properties.

The improved Styrol water tank also allows ethanol to be used as an alternative measuring medium when required by the application.

Simple Operation for Maximum Productivity

Quick Measurements

Density and volume measurements are completed in approximately 10 seconds, allowing many samples to be tested throughout the day with minimal operator training.

Comparator Mode

An integrated comparator function allows operators to quickly determine whether a sample falls within acceptable density limits, making it ideal for production quality control.

PC Connectivity

The standard RS-232C interface enables easy connection to compatible computers for recording measurement results and integrating the instrument into laboratory documentation systems.

Reliable Quality Control

The EW-300SG conforms to recognized hydrostatic and pycnometer measurement methods and supports industry standards used throughout plastics, rubber and materials testing laboratories. Its repeatable measurement process helps improve consistency while reducing operator variability.

Applications

The Alfa Mirage EW-300SG is widely used wherever rapid density verification of lightweight materials is required. Its combination of speed, simplicity and repeatability makes it suitable for both laboratory and production environments.

• Rubber manufacturing
• Plastic production
• Foam and urethane manufacturing
• Wood products
• Composite materials
• Incoming material inspection
• Production line quality control
• Research laboratories
• Material comparison testing
• Density verification

Key Features

• Measures floating materials in water
• Approximately 10-second measurement cycle
• Density resolution of 0.01 g/cm³
• 300 g weighing capacity
• Automatic density and volume calculation
• Comparator mode for pass/fail evaluation
• RS-232C computer interface
• Ethanol-compatible Styrol water tank
• Measures density change rate
• Simple operation with minimal training
• Compact laboratory footprint
• Manufactured in Japan by Alfa Mirage

Specifications

SID-220W - a different option for a mode advanced analysis

A compact and economical alternative intended primarily for routine specific gravity measurements of solid samples. Provides an efficient solution for everyday density testing.

Q&A

What materials can the EW-300SG measure?

It is designed primarily for floating materials including urethane, sponge, rubber, plastics and wood.

How long does a measurement take?

Typical density measurements are completed in approximately 10 seconds.

Can the instrument calculate volume?

Yes. Along with specific gravity, the EW-300SG displays calculated sample volume.

Can ethanol be used instead of water?

Yes. The improved Styrol water tank allows ethanol to be used as the measuring liquid when appropriate.

Does the EW-300SG connect to a computer?

Yes. A standard RS-232C interface allows data transfer to compatible computers.

What is Comparator Mode?

Comparator Mode quickly determines whether a sample falls within predefined density limits, simplifying production quality control.

Is the EW-300SG suitable for research laboratories?

Yes, although it is primarily intended for routine production and quality-control testing rather than ultra-high-precision research applications.

What density resolution does the EW-300SG provide?

The instrument provides a density resolution of 0.01 g/cm³.

Which industries commonly use this densimeter?

Plastics, rubber, urethane, wood products, composites and general manufacturing quality-control laboratories.

Where is the EW-300SG manufactured?

The instrument is manufactured in Japan by Alfa Mirage.
