Heating and cooling circulating bath / with mx temperature controller - MX7LR-20 - 7 Liter Low Profile Refrigerated Circulator -20°C
$USD 3,929.00
MX7LR-20-A11B
for accurate temperature regulation of appropriate liquids in a container
- 12 months limited warranty
- 7 Liter or 7 Liter Low-Profile, Temperature Range -20° to +135°C
- 15 or 20 Liter, Temperature Range -30° to +135°C
- User-adjustable high and low-temperature limits and alarms

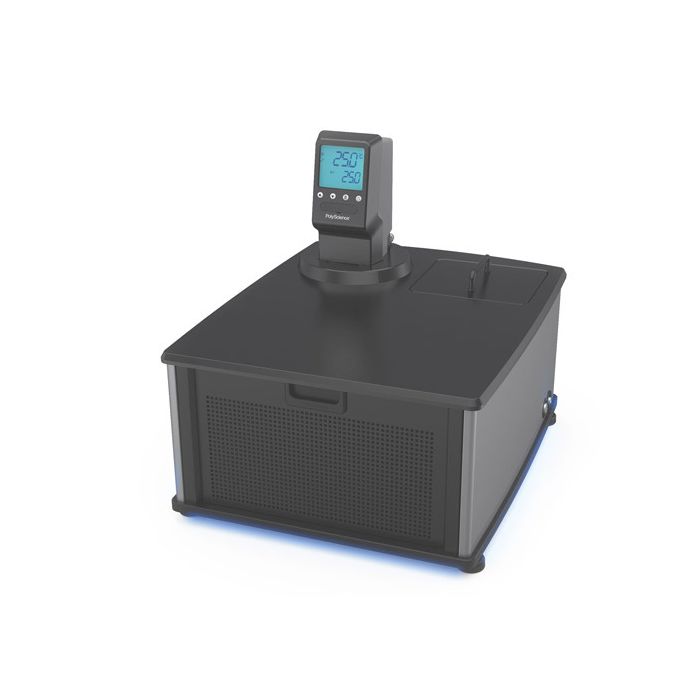

Model: MX7LR-20 - 7 Liter Low Profile Refrigerated Circulator, -20°C
PolyScience Circulating Bath with MX Temperature Controller. It is intended for the precise temperature control of suitable liquids in a reservoir. Extremely easy to use and maintain, it combines design innovation with highly intuitive operation to deliver convenient and versatile liquid temperature control for a wide range of applications.
| Working Temperature Range °F |
-4° to 275°
|
|---|---|
| Working Temperature Range °C |
-20° to 135°
|
| Nominal Cooling Capacity @ +20C (W) |
200
|
| Reservoir Capacity (gallons) |
1.85
|
| Reservoir Capacity (liters) |
7
|
| Reservoir/Tank Material |
Stainless Steel
|
| Reservoir Cover |
Included
|
| DuraTop |
Yes
|
| LidDock |
Yes
|
| Cleanable Air Filter |
Yes
|
| Working Access (L x W x D) (inches) |
6.18 x 5.59 x 5 in
|
| Working Access (L x W x D) (cm) |
15.7 x 14.2 x 12.7 cm
|
| Temperature Stability °F |
±0.13°
|
| Temperature Stability °C |
±0.07°
|
| Display |
3.25" LCD
|
| Display Resolution (Set) |
0.1
|
| Display Resolution (Read) |
0.1
|
| Pump Type |
Pressure
|
| Pump Speed |
One
|
| Process Connections |
1/2" O.D. Barbed Tubes
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Low Liquid Level Protection | Yes |
| Reservoir Drain |
Yes
|
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
23.2 x 16.2 x 17.3 in
|
| Overall Dimensions (L x W x H) (cm) |
58.9 x 41.1 x 43.9 cm
|
| Refrigerant |
R134a
|
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) |
84.0
|
| Shipping Weight (kilograms) |
38.1
|
| Catalog Page Number |
44-45
|
| Price | $USD 3,929.00 |
|---|
