MicroTemp100 Compact Submersible Temperature Recorder for Aquatic and Environmental Applications
$USD 324.00
MadgeTech -
MicroTemp100
Instrument of industrial quality featuring an accuracy specification of ±0.5 °C
- 12 months limited warranty
- Submersible to 230 ft (70 m)
- Only 2.6 inch x 0.7 inch in Size
- Measures Temperatures up to 100 °C (212 °F)

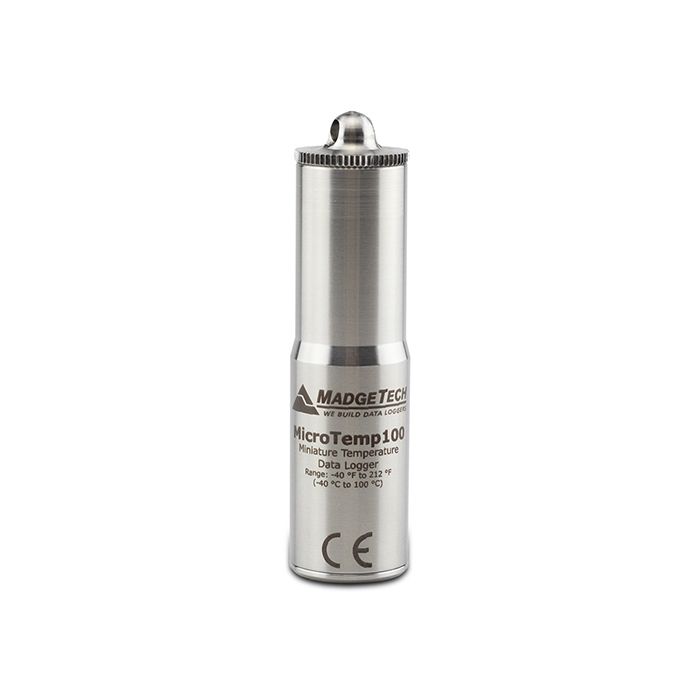

The MicroTemp100: Compact Submersible Temperature Data Logger
Reliable Temperature Monitoring for Tight Spaces
The MicroTemp100 is a miniature submersible temperature data logger capable of measuring from –40 °C to +100 °C (-40 °F to +212 °F). Its compact size—just 2.6 inches (66 mm) tall and 0.7 inches (18 mm) in diameter—makes it ideal for monitoring temperatures in confined or hard-to-reach spaces.High-Performance Features
Despite its small footprint, the MicroTemp100 is submersible to 230 feet (70 m) and can store up to 32,767 readings. It is fully compatible with MadgeTech 4 Software for easy start, stop, and data download, providing graphical, tabular, and summary reports in customizable engineering units including Pasteurization Units (PU).
Includes ISO17025 accredited calibration certificateGeneral
Key Features
- Compact size: 2.6 inch x 0.7 inch
- Reusable design
- Submersible to 230 ft (70 m)
- Programmable start time
- Real-time operation
- User-friendly interface
- Cost-effective
MadgeTech 4 Software Highlights
- Overlay multiple graphs
- Advanced statistics
- Digital calibration
- Zoom in/out functionality
- Lethality calculations (F0, PU)
- Mean Kinetic Temperature
- Full time zone support
- Data annotation
- Min./Max./Average lines
- Summary view
Benefits
- Quick setup and installation
- Low maintenance requirements
- Suitable for long-term field deployment
Applications
- HACCP program implementation
- Medical and pharmaceutical monitoring
- Food processing and preparation
- Biomedical research
- Dishwasher and industrial cleaning testing
- Environmental and hostile condition monitoring
- Well and water temperature monitoring
- Pasteurization processes
Q&A
What temperature range can the MicroTemp100 record?
The MicroTemp100 records temperatures from –40 °C to +100 °C (-40 °F to +212 °F).How deep can the MicroTemp100 be submerged?
It is submersible up to 230 feet (70 meters).How do I download data from the MicroTemp100?
Connect the logger to your computer via the interface cable, stop the logger using MadgeTech 4 Software, then select Download to transfer all recorded data.Is the MicroTemp100 reusable?
Yes, the MicroTemp100 is designed for repeated use with minimal maintenance.Which industries commonly use the MicroTemp100?
It is widely used in food processing, pharmaceuticals, biomedical research, environmental studies, and pasteurization monitoring.| Memory | 32,767 readings |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| LED Indicators | 1 status LED |
| Battery Life | 1-year typical |
| Material | 316 L food-grade stainless steel |
| Dimensions | 2.6 in x 0.7 in dia. (66 mm x 18 mm dia.) |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -40 °C to +100 °C (-40 °F to +212 °F),0 %RH to 100 %RH |
| Required Interface Package | IFC202 |
| Approvals | CE |
Temperature
| Temperature Sensor | Internal semiconductor |
| Temperature Range | -40 °C to +100 °C (-40 °F to +212 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (0 °C to 50 °C) ±1.0 °C (50.1 °C to 100 °C) ±2.0 °C (-40.0 °C to -0.1 °C) |
| Price | $USD 324.00 |
|---|
