Tramex RIK Roof Inspection Set for Moisture Mapping and Roofing System Diagnostics
- 12 months limited warranty
- Hand held electrode with 7.8" (200mm) insulated pins
- 10" (260mm) narrow RH probe
- Hole punch
- Infrared Thermometer
Tramex Roofing Inspection Kit – Non-Destructive Roof Moisture Scanner
Efficient Leak Detection and Moisture Surveying for Roofing Professionals
The Tramex RIK is a professional kit designed for roofing contractors and building inspectors who need precise, non-destructive moisture measurement and leak detection on flat and low-slope roofs. It combines advanced scanning technology with precision tools to quickly identify moisture intrusion and monitor roofing conditions without causing damage.
Highly valued in the roofing and construction industries for its accuracy and portability, the RIK allows contractors to make informed decisions about repairs and preventive maintenance. Its integration with the Tramex Meters App provides streamlined reporting, visualization, and documentation of moisture levels and ambient conditions.
The is a professional‑grade moisture inspection solution that lets roofing and building inspection professionals perform comprehensive, non‑destructive moisture surveys on roofs, waterproofing systems, and deck structures. It combines point‑of‑contact moisture scanning with supplemental probes and accessories for in‑depth roof diagnostics and environmental condition measurement.
Key components and capabilities:
- Non‑destructive roof and wall moisture scanning up to ~4 in (100 mm) deep using the included roof & wall scanner, enabling leak tracing and moisture mapping without damaging roofing membranes.
- The digital moisture meter (CMEX5) provides comparative readings for concrete decks plus optional relative humidity (RH) and ambient conditions when used with hygrometer probes.
- Accessories such as a hand electrode with insulated pins, long narrow RH probe, hole punch, and infrared thermometer expand testing to pin‑type moisture measurement, RH/dew point analysis, and surface temperature recording.
- Bluetooth connectivity to the Tramex Meters app allows visualization, geotagging, and reporting of readings on mobile devices, which is useful for documentation and survey reports.
- Heavy‑duty carry case with die‑cut foam keeps all tools and meters protected and organized.
Ideal applications:
- Moisture inspection and leak investigation in flat roof systems and waterproofing assemblies.
- Evaluating moisture within concrete decks and wood substrates using both non‑destructive and probe‑based methods.
- Collecting relative humidity, ambient temperature, and dew point data alongside moisture content for fuller environmental context.
Complementary inspection tools that pair well with the Roofing Inspector Kit include:
- – includes all Inspector Kit tools plus the DEC Scanner for extended moisture surveying and leak detection depth.
- – a standalone scanner for detailed non‑destructive moisture mapping on roofing and wall structures.
- – a portable moisture meter for quick moisture screening in building materials.
- – for broader material moisture surveys including drywall, wood, and laminates.
Advanced Moisture Scanning
The kit features the RWS Roof & Wall Scanner, capable of non-invasive moisture detection up to 4 inches (100mm) deep in roofing and waterproofing systems. It also allows for precise measurements on concrete decks, pin readings in wood decks and roofing materials, and monitoring of relative humidity, ambient temperature, and dew point with the CMEX5 digital moisture meter and plug-in probes.
Data Logging and Mobile Connectivity
Bluetooth connectivity to the Tramex Meters App enables real-time visualization of CMEX5 readings and wireless reporting to mobile devices. Users can GeoTag test results, create, save, and share photos, reports, and charts. The app mirrors the CMEX5 screen, allowing measurements to be taken in difficult-to-reach areas using the extension handle.

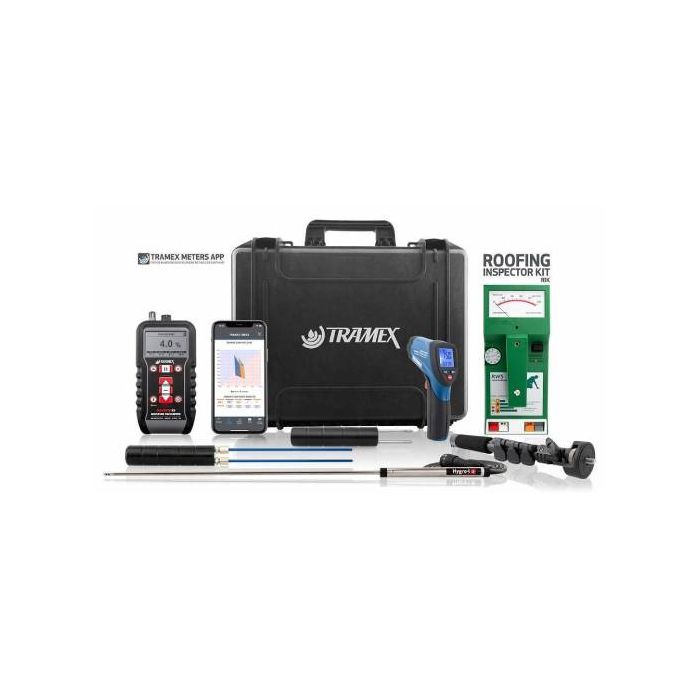

Kit Contents
- Roof and Wall Scanner - RWS + telescopic handle
- Concrete Moisture Encounter X5 - CMEX5
- Infrared Thermometer
- Extension Handle for CMEX5
- App available for Android and iOS (phone not included)
- Heavy-duty protective carrying case with die-cut foam lining
RWS Roof and Wall Scanner – Measuring Range
The RWS allows rapid, non-destructive assessment of moisture in roofing and waterproofing systems, providing point-of-contact readings and continuous moisture mapping up to 4 inches deep.
Building envelope diagnostics and moisture management
Roofing moisture assessment is often part of a broader suite of non‑destructive testing solutions. For targeted flat roofing surveys and moisture mapping, the Tramex Roof & Wall Scanner delivers reliable impedance‑based detection across a variety of membranes and substrates. Projects requiring versatile moisture profiling across substrates such as concrete, wood, and masonry can benefit from the Tramex Concrete Determinator Inspector Kit, which pairs a digital moisture meter with probes and infrared surface temperature measurement for comprehensive condition assessment. For broader restoration and building moisture control workflows, the Tramex Water Damage Restoration Master Kit integrates multi‑material moisture evaluation tools with relative humidity and dew point measurement for post‑event quality assurance and compliance reporting.
Q&A
What types of roofs can the RIK inspect?
It is suitable for flat and low-slope roofs, concrete decks, wood decks, and membrane roofing systems.
How deep can the RWS detect moisture?
The RWS can measure moisture up to approximately 4 inches (100mm) below the surface non-destructively.
Can the kit measure relative humidity and dew point?
Yes, using the CMEX5 digital moisture meter and its plug-in probes, the kit provides relative humidity, ambient temperature, and dew point readings.
Is reporting and documentation supported?
Yes, Bluetooth connectivity to the Tramex Meters App allows GeoTagging, visualization, and export of readings, charts, photos, and reports directly from the field.
| Depth of penetration: | 4" (100mm) |
| Sensitivity: | Four Ranges:> |
| Roofing Mode with high and low sensitivity. | |
| EIFS / Foam Roof Insulation Mode with high and low sensitivity. |
| Depth of penetration in concrete: | approx. ¾" (20mm) |
| Moisture content for Concrete: | 0 → 6.9 % |
| Comparative for Gypsum floor screed: | 0 → 12 |
| CM Equiv Anhydrite/Concrete: | 0→2.7 / 0→4.3 |
| Reference scale: | 0 → 100 |
| Relative Humidity: | 0 → 99% |
| (with optional Hygro-i2 ® probe): | Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F |
| Moisture content for wood (with optional wood pin probes): | 5 → 30 % |
| Temperature range: | -58ºF ~ 1202ºF (-50 to 650 ºC) |
| Distance to Spot ratio: | D:S = 12:1 |
| Display resolution: | 0.1 ºF(0.1ºC) <1000 1ºC >1000 |
| Accuracy for targets: | Assumes ambient operating temperature of 73 to 77ºF (23 to 25 ºC) -58ºF ~ 68ºF (-50 ~ 20ºC) ±4.5ºF (2.5ºC) 68ºF ~572ºF (20ºC ~300ºC) ±1.0% ± 1.8ºF (1.0ºC) 572ºF ~ 1202ºF (300ºC ~650ºC) ±1.5% |
| Repeatability: | -58~68ºF (-50~20ºC) : ± 2.3ºF (1.3ºC) 68~1202ºF (20~650ºC) : ±0.5% or ±0.9ºF (0.5ºC) |
| Response time: | 150ms |
| Spectral response: | 8~14um |
| Emissivity: | Digitally adjustable from 0.10 to 1.0 |
| Over range indication: | LCD will show “----” |
| Polarity: | Automatic (no indication for positive polarity); Minus (-) sign for negative polarity |
| Diode laser output: | <1mW,Wavelength 630~670nm, Class 2 laser product |
| Operating temp.: | 32 to 122ºF ( 0 to 50ºC) |
| Storage temp.: | 14 to 140ºF (–10 to 60ºC) |
| Relative humidity: | 10%~90%RH operating, <80%RH storage |
| Power supply: | 9V battery, NEDA 1604A or IEC 6LR61, or equivalent |
| Safety: | “ CE ” Comply with EMC |
| Size: | 19.2” x 14.9” x 5.7” (487mm x 380mm x 145mm) |
| Weight: | 9.9 lbs (4.51kg) |
| Power: | 2 x 9 volt PP3 Batteries, 2 x AALR6 ALKALINE (Included) |
| Price | $USD 3,770.00 |
|---|
