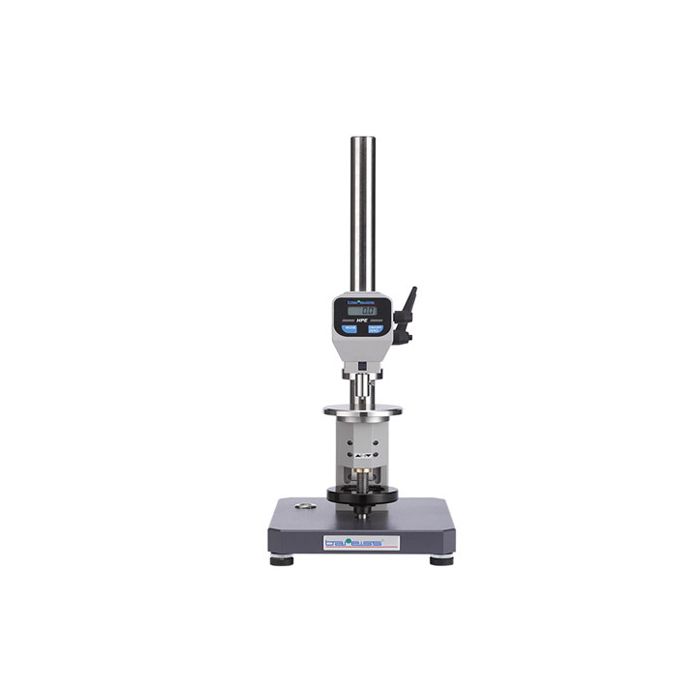

Automatic IRHD Compact III Tester
- 12 months limited warranty
- Innovative testing device for the assured quality of rubber, plastics- and elastic materials
- Rotatable holder with magnifier
- Software Hardtest for Windows: system for data logging and analyses
Bareiss Automatic IRHD Compact III Tester for Application-Based Model Selection
These models are designed for intended for comparing closely related models before choosing a final configuration. It is especially useful for routine testing, inspection, and quality-control workflows, where the right choice often depends on differences in configuration, range, portability, and application fit.
Range of application IRHD M Hardness determination on hoses and tubes, O-rings, molded parts, reference plates, and sealing. Minimum material thickness of 0,6 mm
By means of interchangeable measuring devices for methods IRHD M and IRHD N, soft elastomers with a thickness of up to 0.6mm are easily tested with highly reliable results. The contact pressure and measuring time of this hardness tester are according to international standards. Hardness Tester IRHD Compact III has the capacity to store up to 300 test results and comes with interchangeable probes according to the requirements of the operator. The optional “BareissOne” windows-based software offers data logging, management of articles, display of graphics and hardness curves, statistical evaluation, and further analysis of the measured values.
Characteristics
- The unit consists of an electronic display along with a resolution of up to 0.1 IRHD
- Data transmission can be done with an RS-232 interface.
- Interchangeable probes from Micro to normal depending on the sample used to test
- IRHD Compact III hardness tester is a semi-automatic hardness measuring instrument that is very cost-effective
- O rings, seals, and tube-shaped samples can easily be tested with the help of special fixtures that attach to the instrument.
- The embedded memory is used to store up to 300 test results as well as optical and acoustic signals during the measuring process.
Standards: DIN ISO 48, ASTM D 1415, NFT 46-003, BS903 Part A 26
IRHD Compact II features embedded memory for saving up to 300 test results as well as optical and acoustic signals during the measuring process.
Basic Equipment
Electronic display, RS 232 Data transmitter, Interchangeable probe
Testing Methods
IRHD Micro, IRHD Normal
Standards
ISO 48-2| NF ISO 48| DIN 53512| ASTM D 1415| ASTM D792
ISO/17025 Accredited Calibration Certificate
Official ISO/17025 accredited calibration certificate is available for IRHD M & IRHD N
IRDH Compact III
The advantages of IRHD Compact III: If needed, the IRHD M or IRHD N indenters can easily be exchanged by the customer. For calibration, certification, and evaluation of the instrument, only the measuring head needs to be returned to our Laboratory. Please use the original transport case when sending the device to Bareiss, while the test stand remains with the customer. Resolution: 0,1 IRHD M / 0,1 IRHD N Range of application: hoses, tubes, O-rings, molded parts, norm plates, and seals Minimum material thickness – IRHD M: 0,6 – 5,0 mm Minimum material thickness – IRHD N: 6,0 – 10,0 mm
Related Products
For additional material testing solutions, consider the IRHD Compact II Tester for a smaller and more affordable option, the Durometer Calibration Standards for precise calibration and verification of hardness instruments, or the Gelomat Capsule Tester for specialized testing of gelatin and soft materials.
Size and Weight
Method Micro
Method Normal
READ AN EXHAUSTIVE ARTICLE ABOUT THIS PRODUCT ON OUR BLOG
Product Q&A
What types of samples can the IRHD Compact III test?
The instrument can test hoses, tubes, O-rings, molded parts, reference plates, and sealing materials, with minimum thicknesses of 0.6 mm for IRHD M and 6.0 mm for IRHD N.
What is the difference between IRHD M and IRHD N methods?
IRHD M is used for harder elastomers and thinner materials, while IRHD N is intended for softer, highly elastic, or plastically deformable materials.
How is data managed on the IRHD Compact III?
The tester stores up to 300 results in embedded memory, and optional BareissOne software allows data logging, graphics display, hardness curves, and statistical evaluation.
What standards does the IRHD Compact III comply with?
It meets international standards including DIN ISO 48, ASTM D 1415, NFT 46-003, and BS903 Part A 26.
How accurate is the IRHD Compact III?
It provides a resolution of 0.1 IRHD for both M and N methods, ensuring highly reliable measurement results.
| Dimensions | LxWxH [mm] | Weights |
| Test stand | 200 x 250 x 570 | 9,0 kg |
| Pick-up bracket IRHD N | 100 x 100 x 150 | 1,3 kg |
| Measuring device IRHD N | 70 x 90 x 150 | 1,9 kg |
| Measuring device IRHD M | 160 x 100 x 140 | 1,4 kg |
Product Models
| Product | Price | ||
|---|---|---|---|
|
Automatic IRHD Compact III Tester - IRHD H - indenter Ø 1.0mm |
$USD 6,752.00
|
|
|
|
Automatic IRHD Compact III Tester - IRHD L - indenter Ø 5.0mm |
$USD 6,752.00
|
|
