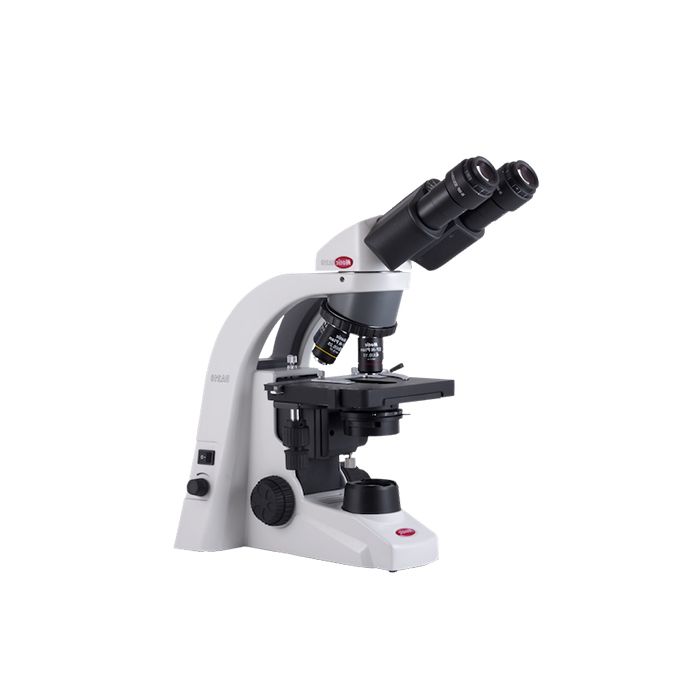

Motic BA210 LED Microscope for Routine Laboratory and Teaching Applications (Binocular, 40–1000×)

The improved BA210 LED binocular microscope sets a new benchmark in educational microscopy

Best for Life Science and Educational Applications

Perfect for students, educators, and laboratory trainers, the BA210 LED binocular microscope is designed for life sciences, medical training, and biological or veterinary studies. Its durable construction ensures long-lasting use in classrooms and training labs.

The BA210 LED Binocular Microscope is a professional biological microscope used by laboratories, universities, research facilities, and quality control departments to examine microscopic samples such as cells, microorganisms, tissue sections, and other biological specimens. Compound microscopes like the BA210 use transmitted light and precision optical components to magnify transparent samples mounted on slides, enabling detailed observation for life science research, education, and laboratory analysis. :contentReference[oaicite:0]{index=0}

Professionals value the BA210 for its infinity-corrected optical system, widefield eyepieces, and Plan Achromatic objectives (typically 4×, 10×, 40×, and 100× oil immersion) that provide clear and accurate imaging across a wide magnification range. Additional features such as a 30° ergonomic binocular head, mechanical stage, Abbe condenser with iris diaphragm, coaxial coarse and fine focusing controls, and long-life LED illumination make it well suited for routine laboratory use and teaching environments. These design elements help deliver stable, repeatable microscopy results while supporting upgrades such as phase contrast, dark field, or polarization techniques when advanced observation methods are required. :contentReference[oaicite:1]{index=1}

Advanced Optics for Clear Imaging

Equipped with Motic's EF-N Plan Achromatic objectives, the BA210 delivers fully corrected intermediate images, providing sharp, clear visuals for both observation and digital capture. Its CCIS® infinity optics allow future upgrades to dark field, polarization, or phase contrast microscopy.

Student-Friendly, Robust Design

Built to withstand classroom use, the BA210 combines professional-level image quality with features designed to prevent damage from frequent handling. Users praise its repeatable performance, ergonomic design, and versatile optical capabilities.

• 30° inclined Binocular Siedentopf head for comfortable viewing, rotates 360°
• Interpupillary distance adjustable between 55-75mm
• Widefield eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces
• Reversed quadruple nosepiece with click stops for precise magnification changes
• CCIS EF-N Plan Achromatic objectives 4X/0.10, 10X/0.25, 40X/0.65 – Spring, 100X/1.25 – Spring/Oil
• Coaxial coarse and fine focusing system with 2 micron minimum increment and tension adjustment
• Vertical travel range 25mm
• Large 140mm X 135mm mechanical stage with low-position coaxial controls; travel range 76 X 50mm
• Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slider slot
• LED illumination 3W with adjustable intensity

Q&A

What magnifications are available on the BA210 microscope?

The BA210 features 4X, 10X, 40X (spring), and 100X (spring/oil) objectives, combined with widefield eyepieces for versatile viewing.

Can this microscope be upgraded for advanced techniques?

Yes, the CCIS® infinity optics system allows upgrades to dark field, polarization, and phase contrast microscopy.

Is the BA210 suitable for classroom use?

Absolutely. Its robust design, ergonomic features, and student-proof build make it ideal for educational settings.

What industries benefit most from this microscope?

Life sciences education, medical training, biological research, and veterinary studies are all ideal applications for the BA210.
