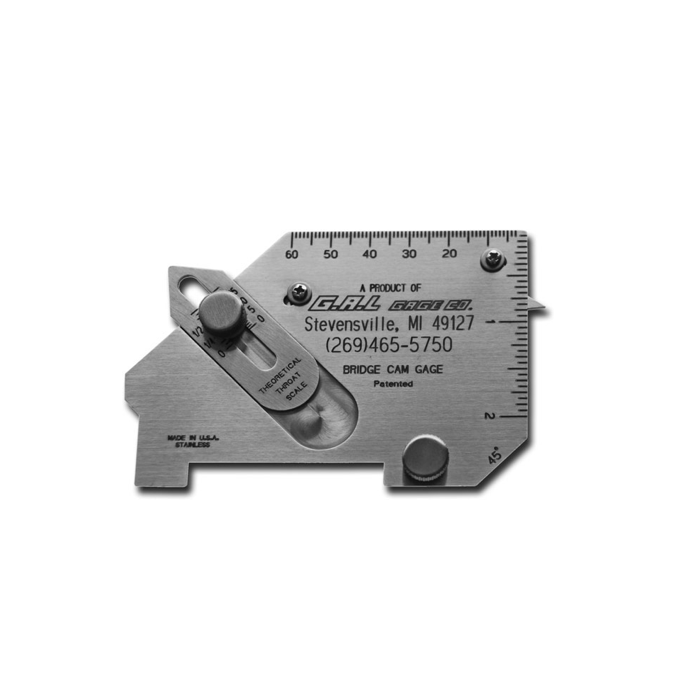

Bridge Cam Gauge for Weld Inspection of Fillet Size, Throat Thickness and Angle Measurements

Available Measurements in Inches or Millimeters

• Angle of Preparation: Adjustable from 0º to 60º for precise bevels
• Excess Weld Metal: Capping size measurement to ensure optimal weld finish
• Depth of Undercut: Accurate detection of undercut areas in welds
• Depth of Pitting: Measures surface pitting for quality control
• Fillet Weld Throat Size: Ensures correct throat thickness for structural integrity
• Fillet Weld Length: Tracks weld length for consistency
• Misalignment (High-Low): Detects deviations for precise alignment

The Bridge Cam Gauge is widely used by welding inspectors, fabricators, and quality control technicians to measure weld fillet throat size and leg length in structural and pressure‑retained welds. These gauges help ensure welds meet specified geometric tolerances and industry code requirements, and welding inspection resources describe how accurate dimensional checks support quality assurance and structural integrity in fabrication and maintenance workflows.

Professionals value the Bridge Cam Gauge for its simple, robust design and rapid measurement capability that supports consistent weld verification during shop or field inspections. Compared with improvised tools, dedicated gauges provide repeatable fillet measurements that improve compliance with welding specifications and reduce the need for costly rework during fabrication quality control programs.

High-Precision Weld Inspection

Our CAT4 BridgeCam gauge is designed for welders, inspectors, and quality control professionals who demand exact measurements. It helps maintain welding standards by providing reliable readings for angles, weld sizes, and surface imperfections.

Durable and User-Friendly Design

Built with rugged materials, this gauge withstands workshop environments while remaining easy to handle. The clear scale markings allow for quick and precise measurements, reducing inspection time and improving overall workflow efficiency.

Applications Across Industries

Ideal for structural steel, fabrication, and maintenance operations, this tool is versatile and suitable for both fieldwork and shop inspections. It ensures compliance with welding codes and enhances the quality of welded joints.

Q&A

What types of weld defects can this gauge measure?

The CAT4 BridgeCam gauge measures undercut, pitting, misalignment, fillet weld throat and length, angle of preparation, and excess weld metal.

Is it suitable for both inches and millimeters?

Yes, the gauge provides measurements in both inches and millimeters for flexible use in different regions and standards.

Can it be used in the field or only in the workshop?

Its rugged and compact design allows it to be used in both field inspections and workshop environments.

Does it require calibration?

For optimal accuracy, periodic calibration is recommended, especially in high-precision applications.

Which industries benefit most from this gauge?

It is widely used in structural steel fabrication, welding inspection, construction, and maintenance industries.
