Crack width gauge - Humboldt

Crack gauges can be used to monitor horizontal or vertical movement across a crack on a flat surface.

Reliable monitoring of structural crack movement over time

Precision measurement design

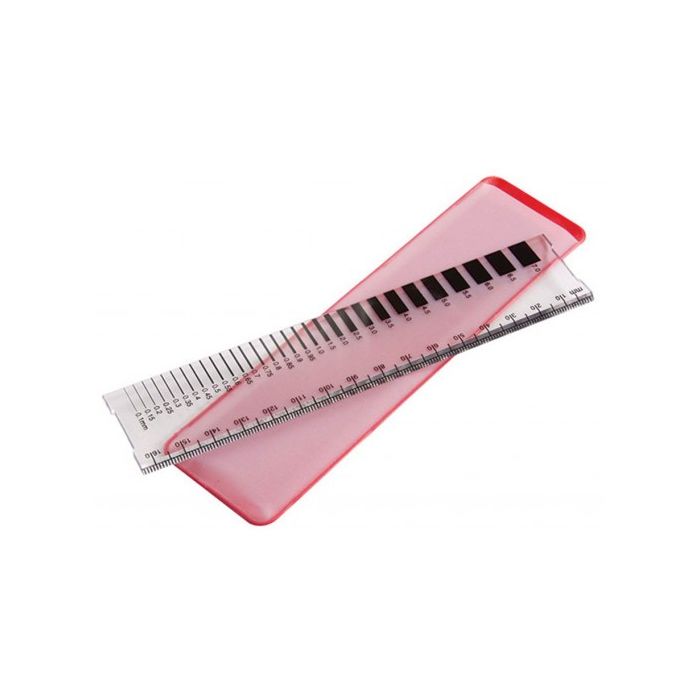

The H-2936A standard crack gauge is a precise mechanical monitoring tool designed to track minute changes in crack width or displacement. It consists of two durable plates that partially overlap along a calibrated measurement zone, allowing clear visual comparison over time.

Clear and easy-to-read scale

The transparent bottom plate features a fine hairline cursor in the form of a cross, making even small movements easy to detect and record during inspections. This design supports consistent readings without the need for power or electronics.

Flexible installation options

The gauge can be securely fixed to the monitored surface using screws or adhesive (not included), making it suitable for concrete, masonry, plaster, or other flat structural surfaces. Each unit is supplied with clear instructions and a record sheet to simplify ongoing monitoring.

Crack gauges like the H-2936A are widely used in building inspection, structural engineering, construction, and facility maintenance. They are valued for their simplicity, reliability, and ability to provide long-term visual evidence of crack movement without calibration or maintenance. Compared to electronic alternatives, mechanical crack gauges offer a cost-effective and robust solution for routine structural monitoring.

The Crack Monitor Gauge – Humboldt is used by structural engineers, building inspectors, and restoration professionals to measure and track changes in crack width on concrete, masonry, and other structural elements over time. Dedicated crack monitoring tools help document movement due to settlement, thermal expansion, shrinkage, or load‑related stress, and industry inspection resources note that quantitative crack monitoring supports condition assessment, maintenance planning, and quality assurance in infrastructure evaluations.

Professionals value the Humboldt gauge for its clear measurement scale, simple installation, and ability to record progressive crack width changes accurately. Compared with periodic visual estimates or improvised measuring methods, a purpose‑built gauge provides consistent, objective data that improve inspection reliability and help support documented structural condition monitoring and risk assessment workflows.

Q&A

What is a crack gauge used for?

A crack gauge is used to monitor changes in crack width or displacement over time, helping determine whether a crack is stable or actively moving.

Can this crack gauge measure both horizontal and vertical movement?

Yes, the H-2936A crack gauge is designed to monitor both horizontal and vertical movement across a crack on flat surfaces.

Is the crack gauge suitable for long-term monitoring?

Yes, it is ideal for long-term monitoring as it requires no power, has no moving parts that wear out, and provides clear visual readings over extended periods.

How is the crack gauge installed?

The gauge can be mounted using screws or adhesive, depending on the surface and application. Installation instructions are included with the product.
