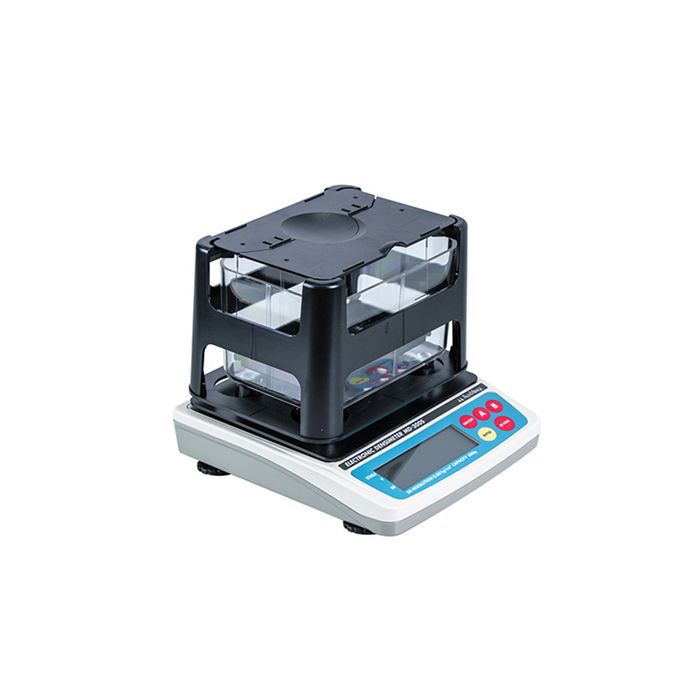

Densimeter for plastics and composites

Alfa Mirage Densimeter for plastics and composites — Density checks on plastics and composite materials

This densimeter is most relevant to plastics processors, composites manufacturers, and laboratory users who need density data for material verification and quality control. Typical use cases include incoming material checks, product development, and comparison of finished parts against target specifications.

Accurate Density Measurement for Solids and Liquids

This densimeter provides highly precise measurements of plastics, composites, and other materials, with a density resolution of 0.001 g/cm³ and a weight range of 0.01–300 g. It can also measure the specific gravity of liquids (with optional liquid kit) and record water temperature.

A precision laboratory instrument used by materials engineers, plastics manufacturers, and quality control laboratories to measure the density or specific gravity of polymer and composite materials. Density measurement is widely used in plastics testing because it helps verify material composition, detect formulation changes, and confirm the consistency of raw materials or finished products. These instruments are commonly used in industries working with polymers, rubber, composites, electronics components, and engineered materials.

Electronic densimeters for plastics typically operate using the Archimedes buoyancy principle, where the sample is weighed in air and then in a liquid medium (often water) to automatically calculate density and volume. Models such as this type of densimeter can measure samples ranging from small fragments to larger plastic parts, with density resolutions around 0.001 g/cm³ and measurement ranges up to approximately 300 g. The instrument can measure both solid materials and, with optional accessories, liquids, providing fast density readings—often in about 10 seconds—for efficient laboratory testing and materials development workflows.

Key Features

• Measures specific gravity of solids and liquids
• Density resolution: 0.001 g/cm³
• High-accuracy general-purpose model with advanced functions
• Simple operation: place sample in container and immerse in water
• Extended weighing range up to 300 g
• Supports both solid and liquid measurements
• Fast measurement time, approximately 10 seconds
• Comparator function with optional buzzer
• Customizable settings for new material development (Solid mode)
• Large and floating objects accommodated with bigger container and tank
• Compatible with ethanol using the improved Styrol water tank
• Standard interface included for data transfer

Applications and Advantages

Industries such as plastics manufacturing, composite material testing, and quality control widely use this densimeter. Users praise its rapid measurement speed, high accuracy, and versatility for different sample sizes. Compared to similar models, it offers a broader weighing range, easier handling of large or floating samples, and optional features for material development.

Technical Q&A

Can this densimeter measure liquids?

Yes, with the optional liquid kit, it can measure the specific gravity of liquids accurately.

What is the maximum sample weight it can handle?

The densimeter supports weights from 0.01 g up to 300 g.

How long does a measurement take?

A typical measurement is completed in about 10 seconds.

Can large or floating objects be measured?

Yes, the larger square container and water tank make it easy to measure large or floating samples.

Where is density testing helpful?

It is helpful in material identification, quality control, formulation checks, and comparison of production samples against expected values.

Who benefits most?

Material labs, plastics processors, and composites teams benefit most when they need a practical instrument for repeatable density verification.

Because it combines For measuring solid and liquid specific gravity, Density resolution: 0.001 g/cm3, A general-purpose new densimeter with high accuracy and additional advanced features, this product is a good fit for plastics and composites workflows that rely on consistent density checks.
