GENCR200-0 Portable Digital Colorimeter for Accurate Color Analysis and Product Quality Assurance

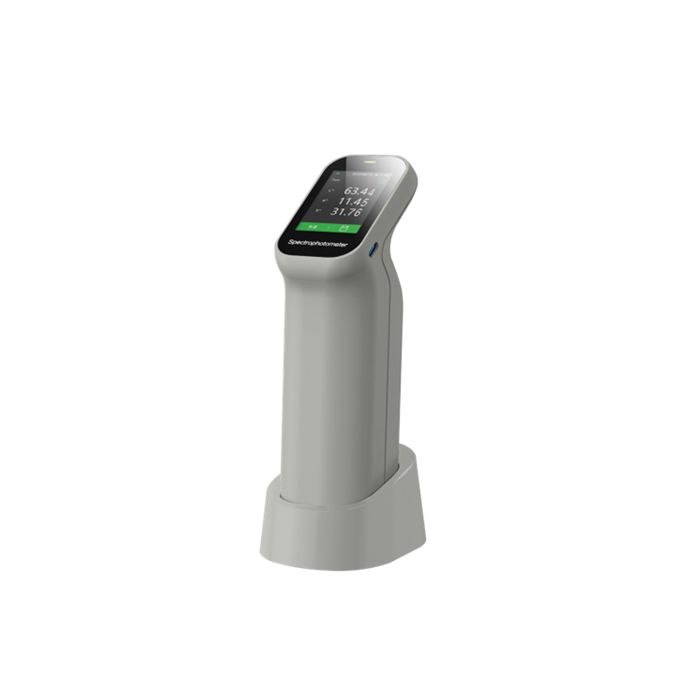

GENCR200-0 Handheld Colorimeter – High-Precision Color Difference Detection

Reliable Instrument for Industrial and Laboratory Color Measurement

The GENCR200-0 is a handheld colorimeter designed for precise, repeatable color measurement. With a repeatability accuracy of dE*ab ≤ 0.03, it is ideal for quality control in paint, textile, plastics, coatings, and printing industries. Users praise its stability, ease of use, and advanced optical technologies that ensure accurate color evaluation under varying lighting conditions.

Key Technology

Dual Optical Path Design

The dual optical path tracks variations in light source energy while measuring, reducing interference and improving measurement stability. This configuration enhances repeatability to dE*ab ≤ 0.03, ensuring consistent speed, accuracy, and stability. Related technologies are protected by invention patents in China and the USA.

5-Micron Nano-Integrated Optics

Using 5-micron nano-integrated optical devices as light splitters, the GENCR200-0 achieves nano-level light splitting performance. This innovation improves technical performance and measurement precision. Relevant technologies are protected by Chinese patents.

Features

(1) Over 30 Measurement Indicators

• RGB, Lab, Reflectance, LCh, Hunter Lab, CIE-Luv, XYZ, Yxy
• Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00)
• Whiteness (WI, multiple standards)
• Yellowness (YI, ASTM standards)
• Blackness, Color Fastness, Tint, Opacity, Color Strength
• Color Density CMYK (A,T,E,M), Munsell, Milm

(2) Evaluate Color under Multiple Light Sources

Supports nearly 40 evaluation light sources including A, B, C, D50, D55, D65, covering nearly all industry-standard color measurement indicators.

(3) SCI Measurement Mode

SCI (Specular Component Included) measures color properties independent of surface gloss, providing consistent color evaluation.

(4) UV Mode for Fluorescent Colors

Provides reliable reflectivity data for surfaces containing fluorescent materials.

(5) Automatic Calibration Base with Zirconium Reference

Automatic calibration ensures long-term stability. Zirconium white plate with Mohs hardness of 9 resists scratches and maintains color stability despite temperature or humidity changes, outperforming ceramic or plastic calibration plates.

(6) Six Measurement Apertures

• Stable type: Φ11mm, Φ6mm, Φ3mm
• Dexterous type: ▽11mm, ▽6mm, ▽3mm

Rotation mechanism simplifies aperture selection without manual screw fixing.

(7) Built-in HD Camera

Camera captures the measured area for accurate sample targeting, preventing errors from measuring incorrect regions.

(8) Mobile App Support

• Compatible with WeChat, Android, iOS, and Hongmeng apps
• Share color data easily, search color libraries, and manage personal or business color databases
• Cloud synchronization allows multi-device data sharing and remote color recipe management

(9) PC-based Color Management – ColorExpert

Windows software ColorExpert included; connects via Bluetooth or USB. Four modules: My Colours, Colour Check, Colour Matching System, and Personal Centre for comprehensive color management.

Appearance Structure

* Diffuse illumination / 8° directional reception with specular reflected light included or excluded

** White plate calibration with 30 standard deviations measured at 5-second intervals after calibration

Complementary instruments that enhance sample analysis capabilities

For spectral evaluation tasks where extended wavelength data are crucial, the Hanna Iris Visible Spectrophotometer offers precise optical performance across 340–900 nm for laboratory and field color assessments. When broader multi‑parameter measurements are needed, the Portable pH/EC/TDS/Temperature Meter with CAL Check™ consolidates key liquid quality metrics into a rugged handheld solution. Additionally, for a more economical color analysis option with auto‑calibration features and a range of measurement parameters, the Spectral Colorimeter expands instrumentation flexibility while maintaining industry‑grade repeatability and accuracy.

Q&A

What is the repeatability accuracy of the GENCR200-0?

It achieves dE*ab ≤ 0.03, ensuring highly reliable color measurement.

Can it measure fluorescent colors?

Yes, the integrated UV mode provides accurate reflectivity data for fluorescent materials.

Does the device support mobile connectivity?

Yes, it supports WeChat, Android, iOS, and Hongmeng apps for sharing and managing color data.

Is automatic calibration available?

Yes, the calibration base with zirconium white plate ensures stable and accurate calibration without frequent manual adjustments.
