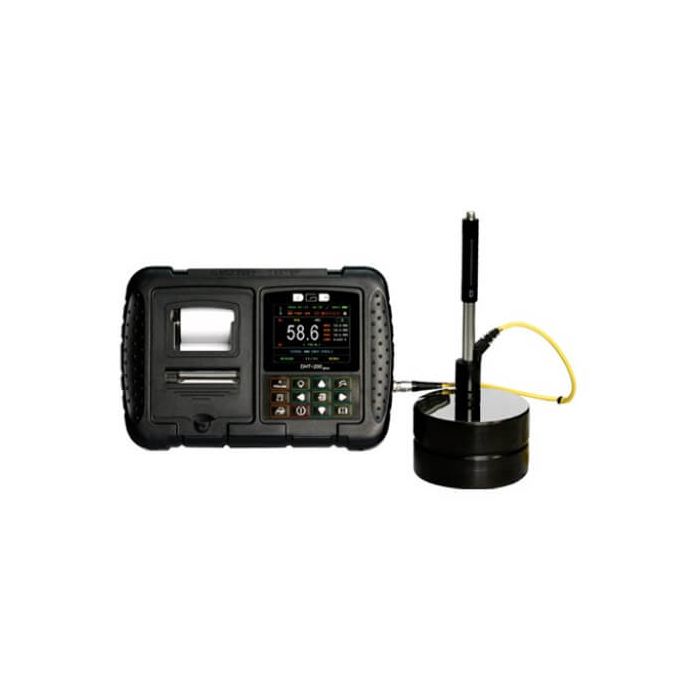

DHT-200 Digital Hardness Tester for On-Site Metal Testing (HL, HRC, HB, HV)
- 12 MONTHS LIMITED WARRANTY
- USB Ouput
- Large LCD display with back light
- Easy to read menu operation
This Metal Hardness Tester DHT-200 Measures a Wide Range of Metals
Precision Hardness Testing Made Easy
The DHT-200 is a versatile hardness tester designed for both flat and round metal surfaces. It features an interchangeable impact probe, a digital display, and a memory function capable of storing up to 999 readings. Data can be printed directly via the built-in printer or exported to a computer for further analysis. The tester provides accurate hardness conversions to HLD, HRC, HRB, HB, HV, and HS, with a precision of ±0.5%.
Industries & Applications
This tester is widely used in manufacturing, metalworking, automotive, and quality control industries. Users praise its ease of use, reliable accuracy, and fast measurement capabilities. Compared to other testers, the DHT-200 stands out for its multi-functional data storage, broad compatibility with various impact devices, and straightforward digital interface.
| Optional Accessories | |||
|
|||
| Functions | |||
|
|||
| Optional Impact Devices | |||
|
Impact Device DL – Needle front section 0.109″ diameter x 1.96″ length, ideal for extremely confined spaces. Impact Device G – Enlarged test tip for solid heavy components such as rough castings and forgings (Brinell only). Impact Device DC – Extremely short device for very confined spaces such as holes, cylinders, and internal measurements. Impact Device D+15 – Slim front section with coil set back, perfect for grooves and recessed surfaces. Impact Device C – Reduced impact energy for case-hardened or thin-walled components. |
|||
Impact Device D – Universal device for most hardness testing tasks.
Complementary hardness and surface analysis instruments
For example, the Barcol HPE II hardness tester is well suited for determining hardness on fiberglass-reinforced plastics, thermoplastics, and aluminum alloys, providing reliable measurements in field or production environments. In applications involving polymers, elastomers, or rigid plastics, the PTC durometer ASTM – Shore D offers a robust solution for standardized hardness testing in accordance with ASTM D2240. Additionally, manufacturers concerned with machining quality and surface finish may benefit from integrating the portable surface roughness tester TR200 Plus, which enables precise evaluation of surface texture across flat, curved, and inclined components. Together, these instruments help support comprehensive quality control programs across a wide range of industrial materials and processes.
Q&A
What metals can the DHT-200 test?
It can measure a wide variety of metals, including steel, cast iron, aluminum, brass, and bronze, on both flat and curved surfaces.
How accurate is the DHT-200?
The device provides a measuring accuracy of ±0.5% and can automatically convert results to HLD, HRC, HRB, HB, HV, and HS scales.
Can I export test results?
Yes, results can be printed via the built-in printer or exported to a computer using the USB connection for analysis and record-keeping.
Which impact device should I use for thin-walled parts?
Impact Device C is recommended for case-hardened or thin-walled components due to its reduced impact energy.
How many readings can the DHT-200 store?
The tester can store up to 999 readings in its memory for later review or printing.
| Operation | |||
|
|||
| Standard Accessories | |||
|
|||
| Price | $USD 2,250.00 |
|---|
