6235-010 Handheld Stroboscope for Equipment Diagnostics and RPM Analysis
- Energy-efficient with long battery life
- Lightweight and pocket-sized
- Extremely bright, uniform light

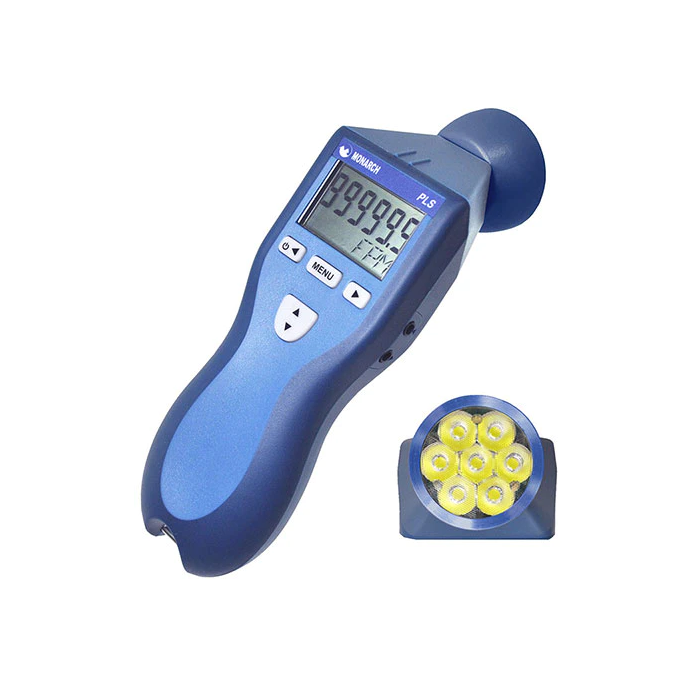

The Portable Digital Stroboscope is a compact, rugged, lightweight device that provides a super bright, uniform light output for performing visual diagnostic inspection and RPM measurements.
Widely used in industrial maintenance, mechanical diagnostics, and scientific research, the Portable Digital Stroboscope has been cited in studies involving rotational equipment analysis and vibration monitoring. Industry reviews highlight its precision, ease of use, and reliability, while customer feedback consistently praises its long battery life and accurate RPM measurements. Typical applications include machinery inspection, motor testing, conveyor monitoring, and quality control in manufacturing environments, where users value its portability and consistent performance.
The quiet, efficient LED lights consume very little energy, offering up to 5 hours of use on a single charge. Its broad operational range of 30-300,000 flashes per minute covers most industrial requirements. Additional capabilities include external input for remote activation or tachometer functions, pulse output, storage for up to 5 preset flash rates, N.I.S.T. calibration certification, and tachometer functionality for speed readings up to 250,000 rpm with optional remote sensors and TTL pulse output.
FEATURES
- Energy-efficient with long battery life: The stroboscope can operate continuously for hours without recharging.
- Lightweight and pocket-sized: Easy to carry and maneuver in tight spaces.
- Extremely bright, uniform light: Provides clear visualization of fast-moving objects.
- Quiet, cool operation: LED technology minimizes noise and heat generation.
- No lamp replacements: Durable LED source ensures long-term use without maintenance.
- Diagnostic inspection and RPM checks: Ideal for monitoring rotating machinery and identifying mechanical issues.
- Digital LCD: Clear display for easy reading and precise adjustments.
- Tripod mounting bushing (1/4-20): Supports stable mounting for hands-free operation.
- CE marked, RoHS compliant: Meets safety and environmental standards.
- NIST Traceable Certificate included: Ensures accuracy and calibration compliance.
- Intuitive one-hand operation: Allows quick and efficient use in the field.
Q&A
What is the maximum RPM the stroboscope can measure?
The Portable Digital Stroboscope can measure speeds up to 250,000 RPM when using optional remote sensors.
How long does the battery last on a full charge?
On a full charge, the LED lights can operate continuously for up to 5 hours, depending on flash rate and usage conditions.
Is the stroboscope suitable for industrial machinery inspection?
Yes, it is designed for a wide range of industrial applications, including motor testing, conveyor monitoring, and rotational equipment diagnostics.
Does it require frequent lamp replacements?
No, the device uses energy-efficient LEDs, eliminating the need for lamp replacements.
Can it be mounted on a tripod?
Yes, it features a 1/4-20 tripod mounting bushing for stable hands-free operation.
| Specifications | ||||
| Display | LCD display with 6 numeric 0.506 inch (12.85mm) high digits and 5 alphanumeric 0.282 inch (7.11mm) high digits | |||
| Indicators | Battery level, On Target, Select, TACH, and EXT icons | |||
| Memory | Last setting before power down is remembered and restored on next power up. 5 user settable memory locations | |||
| Flash Duration | Adjustable 0.5 to 2500 microseconds or .1 to 18 degrees of rotation (auto adjusts with flash rate) | |||
| Safety | This product is designed to be safe for indoor use under the following conditions (per IEC61010-1) | |||
| Compliance | CE EN61326-1:2006 EMC 2004/108/EC | |||
| Operating Temp | 32-104°F (0-40°C) | |||
| Humidity | Maximum relative humidity 80% for temperature up to 88°F (31°C) decreasing linearly to 50% RH at 104°F (40°C) | |||
| Input Power | Battery powered: Internal Li-Ion rechargeable batteries 3.6Vdc | |||
| Light Source | 7 LED Array | |||
| Light Output | Average: 1800 Lumens at 6000 FPM 8” from lens | |||
| Color Temp | 5600°K | |||
| Run Time | 5 hours typical at 6000 FPM, and 2.8° pulse width with fully charged batteries | |||
| Charge Time | 4-5 hours typical with supplied charger | |||
| Weight | 0.6 lbs (0.27kg) including batteries | |||
| Dimensions | 7.75" x 2.75" x 2.3" (197 x 70 x 58 mm) | |||
| Internal Mode | ||||
| Flash Range | 30-300,000 FPM (Flashes per minute) 0.5 to 5000Hz | |||
| Flash Rate Accuracy | 0.005% of setting or ± last digit | |||
| Flash Rate Resolution | 0.01 to 1 FPM (menu selectable),0.1 FPM resolution above 9,999.99 FPM, 1 FPM resolution above 99,999.9 | |||
| External Modes | ||||
| Flash Range | 0-300,000 FPM (Flashes per minute) 0.5 to 5000Hz | |||
| Tachometer Mode | 30 to 300,000 RPM | |||
| Accuracy | ±0.005% of reading or ± last digit | |||
| Display Update Rate | 0.5 second typical above 120 RPM | |||
| Trigger to Flash Delay | ~15 µsec | |||
| External Input | 2.5V to 12V peak pulse 500 nanosec min pulse width, positive or negative edge triggered (menu selectable) | |||
| Display Update Rate | Instantaneous | |||
| Output Pulse | 3V pulse. One pulse per flash in internal mode. Mimics input pulse in external mode | |||
| Time Base | Ultra Stable Crystal Oscillator | |||
| Price | $USD 526.00 |
|---|
