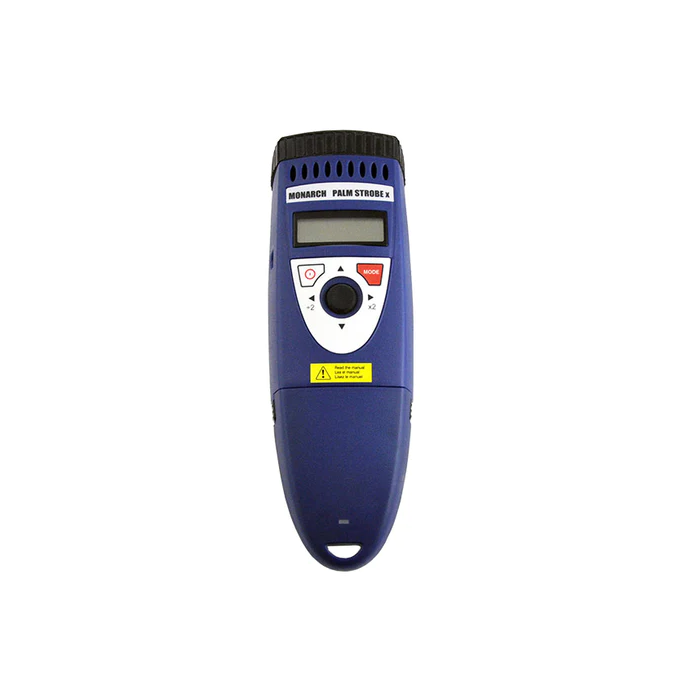

Monarch Palm-Strobe Handheld Stroboscope for Equipment Diagnostics and RPM Measurement
- Lightweight
- Flash rates to 12,500 FPM
- Tachometer Mode from remote sensors
The portable digital stroboscope is an essential handheld instrument used worldwide for motion analysis, speed measurement, and industrial inspection by creating the illusion of slowed or stopped movement through rapid flashes of light. Scientific principles behind stroboscopes are well‑established and rely on the stroboscopic effect, a temporal aliasing phenomenon that synchronizes light pulses with repetitive motion to visualize fast movements as quasi‑static for detailed examination. Devices like this are referenced in engineering applications for quality control and preventive maintenance across multiple industries.
Industry and user feedback: Portable stroboscopes with digital controls and LED illumination are commonly recommended in trade publications and technical reviews for their accuracy and bright output that surpasses traditional xenon lamps. Independent product listings often highlight the value of long battery life, high flash rates and robust construction, which customers note improves usability in dark or industrial environments.
Typical uses and user impressions: These instruments are popular for non‑contact RPM monitoring, detailed inspection of rotating machinery including rotors and gears, and for troubleshooting operations without interrupting production. Professionals in manufacturing, automotive maintenance and research environments generally report that digital stroboscopes enhance safety and diagnostic capabilities. This feedback underscores the tool’s versatility and strong performance across use cases.
The Portable digital stroboscope offers excellent brightness, exceptional features and extra long battery life.
Distinctive one‑touch joystick‑style button enables single‑handed use for quick fractional RPM adjustments. Choose the operational mode for internal adjustment, external TTL input, tachometer readout, and x2 /2 features. Eight memory slots allow quick access to user‑defined frequencies.
Features
- Removable, rechargeable battery pack (US Patent 6,945,666)
- Unique joystick tuning button for single‑hand operation
- Lightweight
- Flash rates to 12,500 FPM
- Tachometer Mode from remote sensors
- TTL compatible input/output
- NIST Traceable Certificate included
Portable digital stroboscope – Specifications
[Add specific numerical specs here if available, or a table of flash rate ranges, accuracy, battery life, weight, and dimensions as applicable.]
To support broader diagnostic and measurement tasks, consider integrating complementary instrumentation such as the Pal‑Salt Digital Pocket Salt Meter, which provides precise salt concentration analysis in food, beverage, and laboratory quality control environments, enhancing overall process monitoring capabilities. For fast and accurate temperature verification at critical control points, the Hanna Checktemp® Digital Thermometer offers reliable penetration temperature measurement with CAL Check™ diagnostics, making it a robust addition to comprehensive industrial testing portfolios.
Q&A
What is a digital stroboscope used for?
A digital stroboscope is used to measure rotational speed (RPM), conduct motion studies, inspect moving parts without contact, and diagnose vibration or alignment issues in machinery.
How does the stroboscopic effect work?
The stroboscopic effect synchronizes the frequency of light flashes with the motion of an object so that the object appears to slow down or stop, enabling detailed visualization of fast movements.
Can this device measure speed accurately?
Yes, portable digital stroboscopes with digital controls and calibration certificates provide accurate speed measurements, often with resolutions down to fractions of RPM over a wide flash range.
| PALM STROBE x | |
| Display | 6-digit alphanumeric backlit LCD |
| Light Power | 7.9 watts @ 6000 FPM, 150 mJoules up to 3100 FPM |
| Flash Duration | 10-30 µsec typical |
| Flash Lamp Life | 100 million flashes typical |
| Internal Mode | Flash Range: 100-12,500 FPM |
| Resolution: 0.1 FPM | |
| Accuracy: greater of ± 0.01% of reading or ± 0.5 FPM | |
| External Mode | Range & Display: 0-12,500 FPM |
| Display Update Rate: 1 second typical | |
| Trigger to Flash Delay: <5 µsec | |
| External Input: 0 to 5 V TTL Compatible (12 V pk max) 1 µsec min pulse width, Positive edge triggered | |
| Tachometer Mode | Range: 5-250,000 RPM |
| Accuracy: +/-0.01% or 0.1 RPM | |
| Display Update Rate: 1 second typical | |
| External Input: 0 to 5 V TTL compatible (+12 V pk max) 20 micro-sec min pulse width; positive edge triggered | |
| Run Time | Two (2) hours typical @1800 FPM > 1 hour typical @ 6000 FPM |
| Adjustment | Four-quadrant tuner button with blinking decade select for flash rate up and down, multiply by 2 and divide by 2 |
| Output Pulse | 0 to 5 V dc typical - 350 μsec positive pulse [2.5 mm] 1/8" phone plug |
| Power | Removable 6 V dc rechargeable NiMH battery pack |
| Weight | 1.2 lbs. [0.55 kg] including battery |
| Strobe Dimensions | 3.04 x 9.34 in. [77 x 237 mm] |
| Price | $USD 686.00 |
|---|
