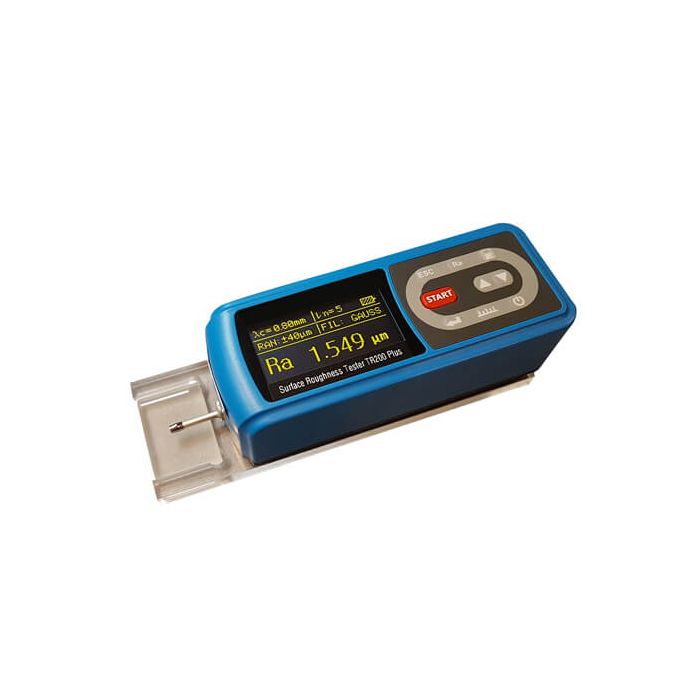

TR200 Plus Digital Roughness Tester for Industrial Surface Finish Inspection

This portable surface roughness tester features an integrated process, dual OLED display and sensor, and allows for user selectable roughness units in Ra or Rz

Ideal for On-Site Surface Finish Inspection and Quality Control

This portable surface roughness tester is designed for fast, reliable surface finish measurement directly on the shop floor or in the field. With an integrated probe and control unit, plus a clear dual OLED display, it delivers accurate Ra and Rz readings without the need for bulky benchtop systems. It is well suited for machining, metalworking, automotive parts inspection, aerospace components, and general manufacturing quality control.

The Portable Surface Roughness Tester TR200 is used by quality control technicians, machinists, and maintenance professionals to measure detailed surface finish parameters on metals, plastics, and machined components. Portable roughness testers provide standardized Ra, Rz, and other surface profile values that help manufacturers verify machining quality and confirm that components meet design specifications.

Professionals value the TR200 for its higher‑resolution measurements, intuitive interface, and compact design that support on‑site surface evaluation without transporting parts to a metrology lab. Compared with manual comparison charts, this tester delivers precise numerical data that improves quality control workflows in manufacturing, inspection, and maintenance applications.

In addition to flat surfaces, it measures round and sloped planes with precision. The “new model” also supports measurement of grooves and recessions up to 3.1 x 1.2 in (80 x 30 mm), expanding its application range for complex parts and hard-to-reach areas.

20 parameters: Ra, Rz, Ry, Rq, Rt, Rp, Rpc, Rk, Rpk, Rvk, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rs, Rmax, Mr1/Mr2

Features

• Electronic, digital unit with high-contrast OLED display
• Advanced DSP chip for high-speed data processing and low power consumption
• Roughness profile graphic display for visual analysis
• Rmr curve (material ratio, C%) display
• Conforms to ISO, ANSI, DIN and JIS standards
• Selectable Metric (µm) and Imperial (µinch) units
• Built-in lithium-ion rechargeable battery with more than 20 hours of operation
• Large memory capacity storing up to 100 groups of original data and wave profiles
• Real-time clock for traceable data recording and documentation
• Automatic dormancy, shutdown and power-saving functions
• PC and printer connectivity for reporting and data transfer
• Optional transducers for curved surfaces, bores, inside pipes and grooves, as well as measuring platform and extension rod

Software

Standard Delivery

• TR200 Plus main unit
• TS100 + Pick-up transducer
• Software with USB cable
• Calibration certificate
• Standard test block
• Battery charger
• Steel protective support
• Manual & carrying case

Optional Accessory

• Probes for curved surfaces, bores and grooves
• Measuring stand platform
• Extension rod for pick-up transducer

Q&A

What roughness parameters can this tester measure?

This unit measures 20 surface roughness parameters including Ra, Rz, Rq, Rt, Rmax, Rsk, Rku and material ratio parameters (Mr1/Mr2), making it suitable for comprehensive surface finish evaluation according to international standards.

Is this surface roughness tester compliant with international standards?

Yes, it conforms to ISO, ANSI, DIN and JIS standards, allowing it to be used in regulated manufacturing and quality control environments.

Can the device store and export measurement data?

Yes, it can store up to 100 groups of original data and wave profiles. It can also be connected to a computer or printer via USB for reporting and documentation.

What types of surfaces can be measured?

The tester measures flat, round and sloped surfaces, and the updated model can measure grooves and recesses up to 80 x 30 mm. Optional probes further extend its capabilities to curved surfaces, bores and internal pipe measurements.
