PUSEY & JONES - Testing rubber rollers for printing and more / Made in Germany
- 12 months limited warranty
- Battery duration: approx. 2000 hours
- Memory: 300 measurements
- Display range: 0 - 300
PUSEY & JONES - Testing rubber rollers for printing and more / Made in Germany — Application-focused testing and routine quality control
This instrument is useful in day-to-day operations where teams need dependable readings during incoming checks, process adjustments, and final verification. Created for testing rubber rollers used in printing or similar rubbery substances
Best for Measuring Hardness of Curved and Cylindrical Rubber Specimens

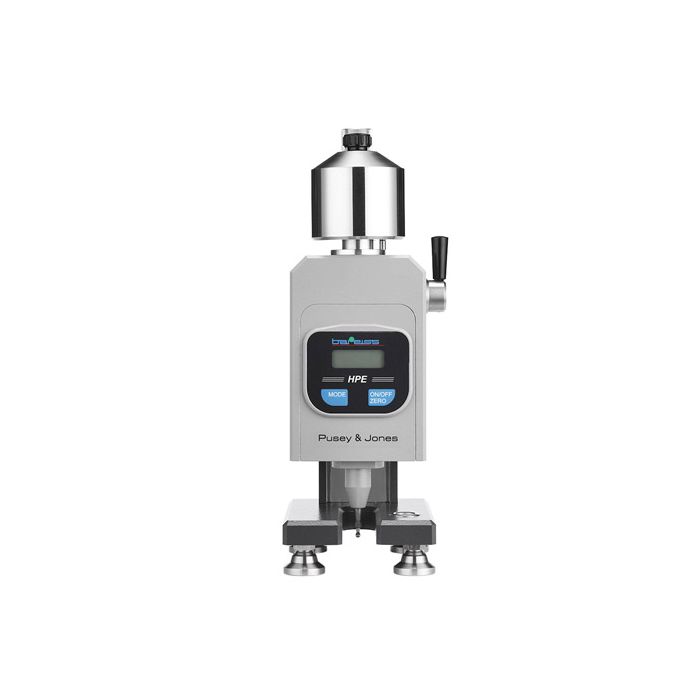

The HPE II Pusey & Jones digital hardness tester is designed for accurate measurement of rubber rollers, paper drums, and other rubber-like materials. Its integrated test stand and adjustable base ensure precise readings, while the internal memory stores up to 300 measurements for easy tracking and analysis. Professionals in the rubber and paper industries rely on it for consistent and reliable results.
Advanced Testing Capabilities
With a vertical spindle on the back, the dial gauge can be moved sensitively up and down. Lowering the lateral load lever applies the prescribed 9.8 N force, and after 60 seconds the hardness value is displayed. The display can be quickly zeroed by pressing a button once the indenter is raised.
Standards: ISO 7267-3 / ASTM D 531
Features and Benefits
1) Internal memory records up to 300 measured values and RS-232 output.
2) Easily test circular or curved materials with precision.
3) Flexible design ensures consistent and accurate results.
4) Strategically placed weight improves measurement reliability.
Operating Procedure
1) Ensure the loading lever is up and the indenter hangs freely.
2) Position the device on the specimen and center the bubble level.
3) Press the ON/OFF ZERO key to activate.
4) Rotate the set screw to lower the device until the display reads “300”.
5) Rotate the loading lever to start the measurement; display shows remaining time.
6) After 60 seconds, a sound indicates the measurement is complete. 7) Lift the device by rotating the loading lever up and turning the screw until the display reads “0M”.
Size and Weight
Technical Q&A
What materials can the HPE II test?
It is designed for rubber rollers, paper drums, and similar rubber-like or elastomeric materials.
How many measurements can the device store?
The internal memory can store up to 300 measurements for easy tracking and analysis.
Does it comply with industry standards?
Yes, it meets ISO 7267-3 and ASTM D 531 standards for hardness testing.
Is it suitable for curved or cylindrical specimens?
Yes, the device is specifically engineered for accurate testing of curved and cylindrical surfaces.
How precise is the measurement?
The vertical spindle and adjustable lateral load lever ensure highly accurate and consistent hardness readings.
Application Q&A
Because it combines Battery duration: approx. 2000 hours, Memory: 300 measurements, Display range: 0 - 300, this product is a good fit for users who need a dedicated instrument for the application described above.
| Power Supply | lithium-battery 3.6 v, size ½ aa |
| Battery duration | approx. 2000 hours |
| IP code | IP 30 |
| Resolution | 1 Pusey & Jones |
| Measuring ranges | Pusey & Jones |
| Display range | Pusey & Jones: 0 - 300 |
| Data output | rs 232 - 9600 baud, 1 start bit, 8 data bits, 1 stop bit |
| Memory | 300 measurements |
| Dimensions | HPE II Pusey & Jones: 250 x 90 x 130 mm product case: 240 x 210 x 55 mm |
| Weight | HPE II Pusey & Jones: 3.30 kg product case: 0.50 kg |
| Price | $USD 5,480.00 |
|---|
