Scilogex RE100-Pro Rotary Evaporator for Solvent Evaporation and Distillation in Laboratories (Digital Control, 20–280 rpm)
- 12 months limited warranty
- Speed range from 20 to 280 rpm
- Large 5L heating bath
- Patented condenser (cooling surface 1,500 cm²)

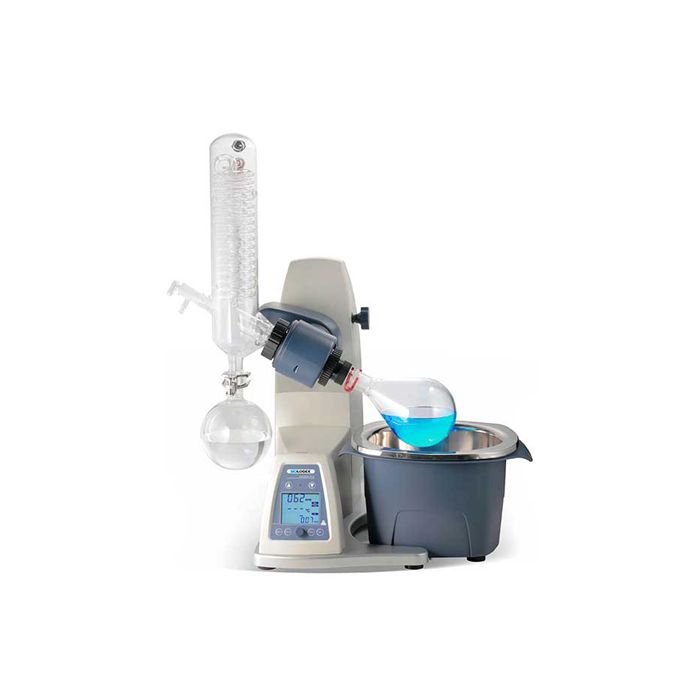

Scilogex RE100-Pro Rotary Evaporator with Large Digital LCD Display
A powerful and essential tool for chemical laboratories, designed for efficient and gentle solvent extraction through evaporation. It ensures superior distillation performance across a wide range of applications.
Key Features of the RE100-Pro
- Large, easy-to-read digital LCD display showing temperature, rotation speed, and timer
- Generous 5L heating bath with temperature range from ambient to 180°C
- Patented condenser with 1,500 cm² cooling surface for exceptional cooling efficiency
- Motorized lift with safety auto-release of the evaporating flask during power failure
- Wide rotation speed range: 20–280 rpm
- Timer function for precise process control
- Chemical-resistant PTFE seals with patented pressure springs for excellent sealing
- PC control and USB documentation of all parameters
- Precise temperature control with adjustable safety circuit
- Quick-release connectors for easy flask removal
The Rotary Evaporator is widely used by chemical laboratories, pharmaceutical researchers, and industrial process teams to gently and efficiently remove solvents from liquid mixtures. By rotating a flask under reduced pressure while applying controlled heat, rotary evaporators lower solvent boiling points, enabling rapid evaporation without overheating sensitive compounds — a principle explained in laboratory separation technique guides that emphasize efficient solvent recovery and concentration during analytical and preparative workflows.
Professionals value rotary evaporators for their precise control of rotation speed, temperature, and vacuum level that deliver consistent, reproducible solvent removal results. Compared with simple distillation, rotary evaporation offers faster processing, better heat distribution, and higher sample throughput, improving efficiency and quality control in organic synthesis, extraction, and sample preparation applications.
Remote Display and Patented Condenser
The display can be detached for remote control operations. The system holds multiple patents, including a unique condenser with 1,500 cm² cooling surface for superior cooling performance. The 5L water/oil heating bath accommodates temperatures from ambient to 180°C, ensuring flexible use across different laboratory applications.
Scilogex RE100-Pro Demonstration
Affordable Rotary Evaporator Solution
The RE100-Pro offers a high-quality rotary evaporation experience at a competitive price, making it an excellent investment for research labs, universities, and industrial applications.
How to Use the RE100-Pro Rotary Evaporator
Instructions
• Verify that the working voltage on the nameplate matches your power supply.
• Ensure the power socket is properly grounded.
• Switch on the power and activate the power switch.
• Adjust the rotation knob to set the desired speed.
• Use the forward/reverse interval button to set rotation direction timing. Setting “0” rotates forward only.
• Press the temperature knob for a few seconds to toggle between water and oil bath modes.
• Turn the temperature knob to set the target temperature (up to 90°C in water bath mode).
• Press the temperature knob to start heating.
• Use the handle switch to insert the evaporating flask into the heating bath.
• Press the adjustment knob to start rotation. Normal operation indicates the evaporator is ready for service. If abnormalities occur, contact your local supplier or manufacturer’s after-sales service.
For detailed guidance, refer to the Instruction Manual / Quick Start Guide
Q&A
What is the maximum rotation speed of the RE100-Pro?
The RE100-Pro can rotate at speeds ranging from 20 to 280 rpm, allowing precise control for various evaporation processes.
Can the display be used remotely?
Yes, the LCD display is detachable, enabling remote monitoring and control of all parameters.
What is the heating bath capacity and temperature range?
The RE100-Pro features a 5L heating bath with a temperature range from ambient to 180°C, suitable for both water and oil baths.
Does the RE100-Pro have safety features for power failure?
Yes, the motorized lift automatically raises the evaporating flask to the top position during a power outage to prevent accidents.
Is the condenser effective for rapid cooling?
Absolutely. The patented condenser has a 1,500 cm² cooling surface, ensuring efficient condensation and solvent recovery.
| Speed range: | 20 - 280rpm |
| Temperature range: | Ambient - 180Ë_x009a_C |
| Heat control accuracy: | ± 1Ë_x009a_C |
| Heat output: | 1300W |
| Lift stroke: | 150mm |
| Timer range: | 1 - 99 mins |
| Reversible motor: | Yes |
| Power: | 1400W |
| Motor type: | DC brushless |
| Dimensions: | 18.3L x 18W x 23H inches |
| Weight: | 33lbs |
| Voltage, Hz: | 110V, 60Hz |
| Price | $USD 2,178.00 |
|---|
