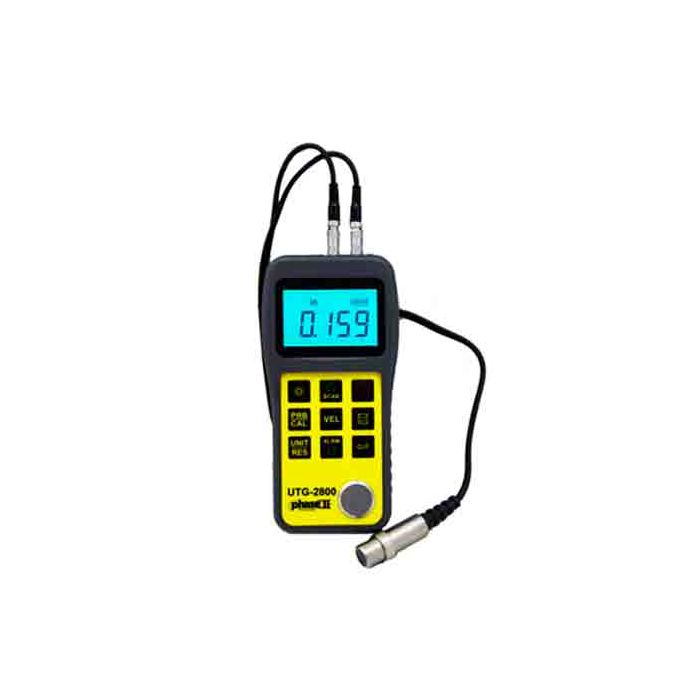

Phase II UTG-2800 Digital Ultrasonic Thickness Meter for Corrosion and Wall Thickness Testing across Multiple Materials
- 12 months limited warranty
- USB Output
- Display readings in inches or millimeters
- Upper/Lower limit preset alarms
Phase II Ultrasonic thickness gauge for metal plastics and more — Wall-thickness measurement on metal and non-metal parts
This product is most relevant to inspectors, maintenance teams, and fabrication shops who need fast instrument-based checks outside a full laboratory setup. Good use cases include incoming inspection, maintenance work, shop-floor verification, and reporting on parts that are too large, too installed, or too numerous for slower bench methods.
Precision Measurement for Metals and Non-Metals
This ultrasonic thickness gauge offers professional-level features at a practical price. Ideal for measuring metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, and glass with parallel surfaces, it provides accurate thickness readings after a simple calibration.
Advanced Features
Includes basic measurement, scanning functions, adjustable sound velocity, expanded memory, and USB output. Readings are clearly displayed in inches or millimeters.
Complete Kit
Comes with Base Instrument, 5MHz Dual Sensor Straight Probe, 2oz Bottle of coupling gel, Data Output Software, USB Cable, Certificate of Calibration, Operation Manual, and Custom Carry Case.
Phase II Most Popular Ultrasonic Thickness Gauge
High-Value Features
- High-resolution accuracy at an economical price
- Upper/Lower limit preset alarms
- Rugged design for challenging environments
- Display readings in inches or millimeters
- USB Output for data transfer
- Optional Mini Printer available
Applications
- Electrical and Mechanical Inspection
- Test & Measurement
- Building and Structural Applications
- Marine Engineering and Ship Maintenance
Why Choose This Gauge?
Praised for reliability and ease of use, this ultrasonic gauge suits industries like manufacturing, construction, and marine engineering. Users value its combination of accuracy, ruggedness, and feature-rich design, making it a competitive choice against other high-end models.
Technical Q&A
What materials can this ultrasonic thickness gauge measure?
It can measure metals like steel, aluminum, and titanium, as well as plastics, ceramics, and glass, provided the surfaces are parallel.
Can the readings be displayed in both metric and imperial units?
Yes, the gauge can easily switch between inches and millimeters using the UNIT/RES key.
Does it come with software for data output?
Yes, the kit includes Data Output Software and a USB cable for transferring measurement data.
Is this gauge suitable for harsh environments?
Yes, its rugged design and high reliability make it ideal for challenging industrial and marine conditions.
Can it perform scanning measurements?
Yes, it includes scanning functions along with Min/Max settings to analyze material thickness over an area.
Where is this kind of instrument commonly used?
It is commonly used in manufacturing, repair, asset integrity, and quality assurance where rapid screening or repeat verification is needed.
Target industries
Inspectors, maintenance teams, and fabrication shops benefit most when they need portable, repeatable measurements close to the workpiece rather than sending every part to a separate lab.
Because it combines USB Output, Display readings in inches or millimeters, Upper/Lower limit preset alarms, this instrument is well suited to wall-thickness measurement on metal and non-metal parts in field and shop-floor environments.
QUICK TIP:
Changing Resolution: UTG‐2800 has selectable display resolution of 0.01” / 0.001” (0.1mm and 0.01mm). Press the UNIT/RES key while turning on the gauge to switch between High and Low resolution.
Changing Measuring Units: In measurement mode, press the UNIT/RES key to toggle between imperial and metric units.
| Display Type | 4-Digit LCD with Back Light |
| Minimum Display Unit | 0.001" (0.01 mm) (User Selectable) |
| Measuring Range | Starts from 0.040 to 12" in Steel with Standard Probe <20 mm |
| Accuracy | ±(0.5% Thickness + 0.001") |
| Sound Velocity Range | 3,280 to 32,805 ft/s (1,000 to 9,999 m/s) |
| Upper/Lower Limit Preset Alarm | Yes |
| Operating Temperature | 32 to 122°F |
| Frequency | 5MHz |
| Update Range | 4Hz |
| Memory | 20 Groups (100 Files/Group) |
| Output | USB |
| Mini-Printer | Optional |
| Power Supply | 2 x 3V AA Alkaline Batteries |
| Battery Life | Approx. 100 Hours (with Backlight Off) |
| Power Consumption | Working Current is <3V |
| Dimensions | 5.90 x 2.91 x 1.30" (150 x 74 x 33 mm) |
| Weight | 8.6oz (245g) |
| Price | $USD 845.00 |
|---|
