Phase II UTG-2675 Ultrasonic Thickness Meter for High-Accuracy Wall Thickness and Corrosion Testing
- 12 months limited warranty
- Simple to use
- Quick scan
- Ultra-High Resolution: 0.0001"

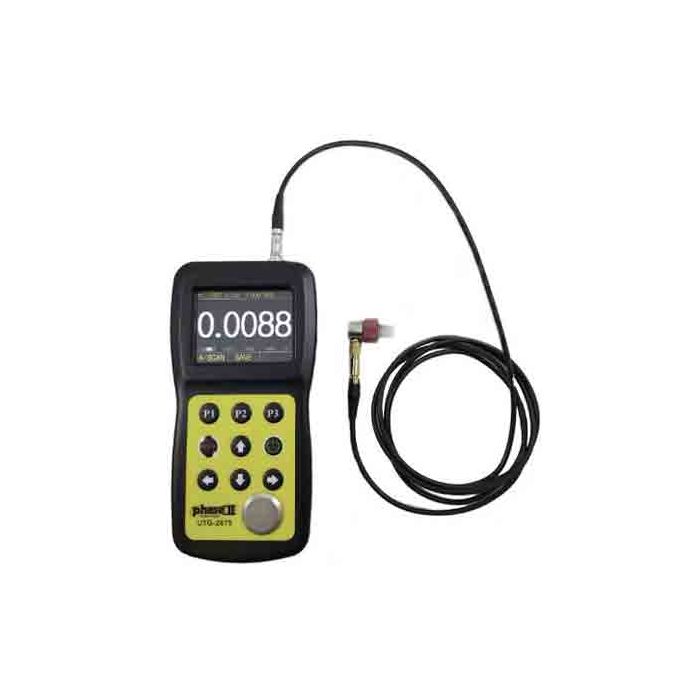

UTG-2675 Ultrasonic Thickness Gauge
Precision Measurement for Ultra-Thin Materials
The UTG-2675 ultrasonic thickness gauge is a compact, hand-held device designed for highly accurate measurement of ultra-thin materials. Ideal for professionals requiring fast, reliable readings, it combines advanced ultrasonic technology with user-friendly operation.
High-Resolution Performance
With a microprocessor-driven system, the UTG-2675 delivers ultra-high resolution measurements of 0.0001" (0.001mm) and supports both standard and dual-element modes. Readings are stable, consistent, and easily displayed in millimeters or inches.
Enhanced Features for Efficiency
This gauge includes Thru-Coating capability, live A-Scan and timed B-Scan, and large memory storage for up to 100,000 thickness values and 1,000 waveforms. Low energy consumption with just two AA batteries makes it practical for extended field use.
Applications and Advantages
Widely used in manufacturing, aerospace, and metal fabrication industries, the UTG-2675 is praised for its accuracy, reliability, and ease of use. Compared to other thickness gauges, it offers superior memory, higher resolution, and advanced scanning features.
The Ultrasonic Thickness Gauge with High Resolution is used by non-destructive testing (NDT) inspectors, manufacturing engineers, and maintenance professionals to measure the thickness of metal, plastic, glass, and composite materials without damaging the part. Ultrasonic thickness gauges work by transmitting high-frequency sound pulses through a material and measuring the time required for the echo to return from the opposite surface, allowing precise thickness calculation even when access is available from only one side of the component, as explained in technical guidance on ultrasonic thickness measurement in NDT applications.
High-resolution ultrasonic gauges are valued for their ability to measure extremely thin materials and detect small thickness variations during inspection. Advanced instruments can achieve display resolutions down to about 0.001 mm, improving measurement precision for applications such as corrosion monitoring, pipeline inspection, and quality control of machined or fabricated parts, as described in technical documentation on high-resolution ultrasonic thickness measurement systems.
Unique Features:
- Thru-Coating Capability
- Live A-Scan, Timed B-Scan
- Ultra-High Resolution: 0.0001"
- Large Data Memory Capacity: Stores 100,000 thickness values & 1,000 waveforms
- Reliable and stable readings
- Standard or dual element measuring modes
- Convenient data display (in both millimeters and inches)
- Low power consumption
Ultrasonic Thickness Gauge - Phase II UTG-2675
Q&A
What materials can the UTG-2675 measure?
It can measure metals, plastics, and composites, including coatings, with high precision.
Does it require calibration before use?
Yes, standard calibration is recommended to ensure accurate measurements.
Can it store measurement data for later review?
Yes, it can store up to 100,000 thickness values and 1,000 waveforms.
Is the gauge suitable for field use?
Absolutely, its compact design, low power consumption, and reliable readings make it ideal for on-site measurements.
| Display type | 2.4QVGA(320×240)true color OLED screen, contrast 10000:1 |
| Operating Principle | Adopts delay line probe ultrasonic measuring principle |
| Measuring Range | 0.2mm to 25.4mm(0.007874" to 1.00") |
| Measuring Resolution | Selectable 0.001mm, 0.01mm or 0.1mm (selectable 0.0001, 0.001", 0.01") |
| Units | Inch or Millimeter |
| Display Mode | Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan |
| V-Path Correction | Automatic |
| Update Rate | Selectable 4Hz, 8Hz, 16Hz per second |
| Material Velocity Range | 500-9999m/s, 0.0179-0.3937in/u |
| Languages | Chinese, English, French, Germany, Japanese |
| Alarm Settings | Minimum and Maximum alarms. Dynamic waveform color change on alarm |
| Power Requirements | 2 AA-size batteries |
| Operating Time | 35+ hours |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity |
| Operating Temperature | -10ºC to +50ºC (+10ºF to +120ºF); -20ºC for special requirements |
| Size | 153mm × 76mm × 37mm(H ×W ×D) |
| Weight | 280g including batteries |
| Price | $USD 1,999.25 |
|---|
