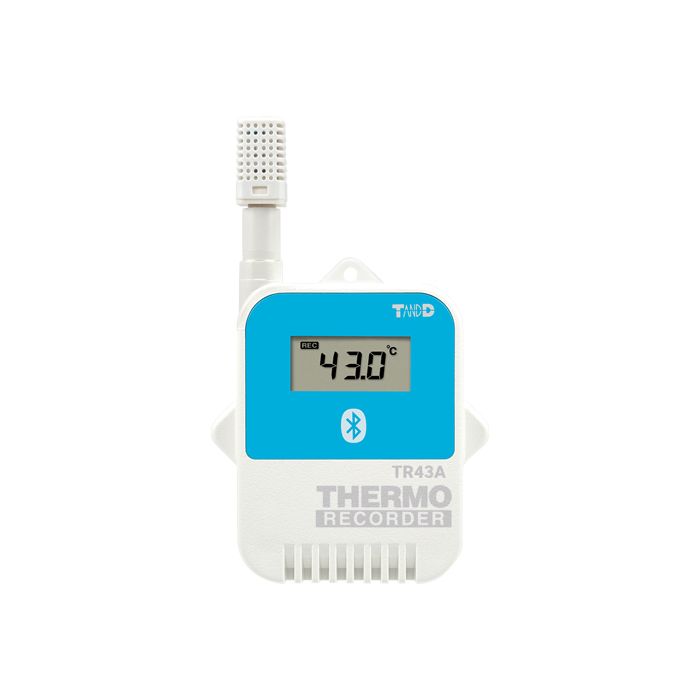

T&D TR-43A Thermo-Hygrometer Data Logger with External Probe for Storage and Facility Monitoring
- Channels : Temperature 1ch, Humidity 1ch
- Range : Temperature: 0 to 55°C / Humidity: 10 to 95%RH
- Comm Interfaces : Bluetooth 4.2 (Bluetooth Low Energy)
2-Channel Temperature and Humidity Data Logger with Mobile App Connectivity
Ideal for monitoring transport, storage, restricted-access areas, homes, and offices
Accurate and convenient monitoring: This logger transmits temperature and humidity data to your mobile device via Bluetooth Low Energy. From the app, data can be uploaded to our complimentary cloud service, "T&D WebStorage Service," using WiFi or a mobile network.
Reliable measurement range
The TR43A sensor measures temperature from 0 to 55°C and humidity from 10 to 95％RH. The device body is rated IP64*, making it suitable for environments from -40 to 80°C.
Compact and versatile design
Its all-in-one design allows easy deployment in various settings, from industrial storage to residential or office monitoring. Users value its simplicity, real-time data access, and the ability to manage logs remotely.
*2: Battery life depends on factors like ambient temperature, recording interval, app usage, and battery condition. Estimates are based on a new battery and do not guarantee actual performance.
*3: Estimated battery life assumes data recording at intervals longer than 10 seconds with daily graph display in the app.
*4: The IP64 rating applies to the logger with the sensor attached. The temperature-humidity sensor itself is not water resistant. Specifications may change without notice.
To broaden your environmental monitoring and data logging capabilities
Explore other advanced data acquisition instruments from Geneq USA. The RTR‑507B wireless temperature and humidity logger provides high‑precision environmental measurement with wireless connectivity for responsive climate tracking in controlled spaces ([turn0search0](#)). For multi‑parameter monitoring that includes CO₂ in addition to temperature and humidity, the RTR‑576 wireless temperature, humidity, and CO₂ logger enables comprehensive data capture for indoor air quality and process environments ([turn0search1](#)). Additionally, the all‑in‑one wireless temperature and humidity logger offers rugged splash‑proof operation and remote data upload for versatile environmental logging where robust field performance is essential ([turn0search10](#)).
Q&A
What is the temperature range of the TR43A logger?
It measures temperatures from 0 to 55°C and humidity from 10 to 95％RH, with the device body supporting -40 to 80°C environments.
Can I use this logger outdoors?
The device is IP64 rated, protecting it from dust and splashes, but the temperature-humidity sensor is not fully waterproof, so avoid direct water exposure.
How is the data accessed and stored?
Data is transmitted via Bluetooth to a mobile device and can then be uploaded to the "T&D WebStorage Service" cloud platform through WiFi or mobile network.
What industries commonly use this logger?
It is widely used in transport, warehousing, food storage, laboratories, and facility monitoring, where accurate temperature and humidity tracking is critical.
| Model | TR43A | |
| Measurement Channels | Temperature 1ch / Humidity 1ch | |
| Sensor | Thermistor | Polymer Resistance |
| Measurement Units | °C, °F | %RH |
| Measurement Range | 0 to 55 °C | 10 to 95 %RH |
| Accuracy | ±0.5 °C | ±5 %RH at 25 °C, 50 %RH |
| Measurement Resolution | 0.1 °C | 1 %RH |
| Responsiveness | Response Time (90%) : Approx. 11 min. | |
| Logging Capacity | 8,000 data sets (One data set consists of readings for multiple channels.) | |
| Recording Interval | Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min. | |
| Recording Mode | Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full) | |
| LCD Display Items | Measurements (alternating display for multiple channel devices),Recording Status, Battery Life Warning, etc | |
| Communication Interfaces | Bluetooth 4.2 (Bluetooth low energy) | |
| Communication Time | Data Download Time (full logger) : Approx. 15 seconds | |
| Power | Lithium Battery LS14250 x 1 | |
| Battery Life (*2) | Approx. 1.5 years (*3) | |
| Dimensions | H 62 mm x W 47 mm x D 19 mm (excluding protrusions and sensor) | |
| Weight | Approx. 45 g | |
| Operating Environment | Temperature: -40 to 80 °C (-30 to 80 °C during wireless communication) | |
| Waterproof Capacity | IP64: Splash proof (rated for use in daily life) (*4) | |
- With the compact rugged design and Bluetooth capability, the TR43A is easy to deploy and operate, suitable for tracking temperature and humidity in transport, in storage, in limited-access areas, as well as in residential and office buildings.
- The free mobile apps that let you access temperature/humidity data anytime from your smartphone or tablet over Bluetooth.
- "T&D Thermo" facilitates logger configuration and data collection using a Bluetooth connection. The data retrieved by the mobile device can be viewed in a graph, saved, output as a PDF report, and uploaded to the cloud-based T&D WebStorage Service.
- "TR4 Report" is a specialized mobile app for generating PDF reports for a specified time period. It allows you to create, print and share data reports in simple steps.
| Price | $USD 206.00 |
|---|
