Heating and cooling circulating bath / with mx temperature controller - MX07R-20 -7 Liter Refrigerated Circulator -20°C
$USD 3,963.00
MX07R-20-A11B
for accurate temperature regulation of appropriate liquids in a container
- 12 months limited warranty
- 7 Liter or 7 Liter Low-Profile, Temperature Range -20° to +135°C
- 15 or 20 Liter, Temperature Range -30° to +135°C
- User-adjustable high and low-temperature limits and alarms

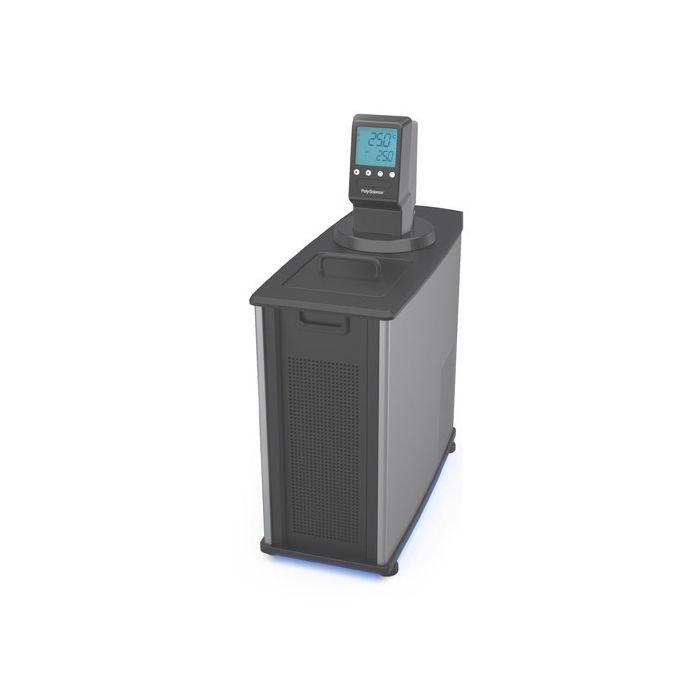

Model: MX07R-20 - 7 Liter Refrigerated Circulator, -20°C
PolyScience Circulating Bath with MX Temperature Controller. It is intended for the precise temperature control of suitable liquids in a reservoir. Extremely easy to use and maintain, it combines design innovation with highly intuitive operation to deliver convenient and versatile liquid temperature control for a wide range of applications.
| Temperature Control Type | MX |
| Product Length | 21.3" (54.1 cm) |
| Product Height | 24.3" (61.7 cm) |
| Bath Volume | 1.85 gal (7 L) |
| Connector Type(s) | 0.5" (12.7 mm) OD barbed tubes |
| Power Requirements | 120 VAC, 60 Hz, 1 Ph, 12 A |
| Product Width | 8.7" (22.1 cm) |
| Product Type | Refrigerated circulator |
| Application(s) | Cooling |
| Working Temperature Range | -4 to 275°F (-20 to 135°C) |
| Temperature Stability | ±0.13°F (0.07°C) |
| Heating Capacity | 1,100 W |
| Cooling Capacity | 30 W at -4°F (-20°C); 120 W at 32°F (0°C); 200 W at 68°F (20°C); 200 W at -212°F (100°C) |
| Pump Flow Rate | 3.6 GPM (13.5 LPM) |
| Refrigerant Type | R134a |
| Product Weight | 84 lbs (38.1 kg) |
| Approvals | RoHS, WEEE, ETL, flammability class (DIN 12876-1) I (NFL) |
| Price | $USD 3,963.00 |
|---|
