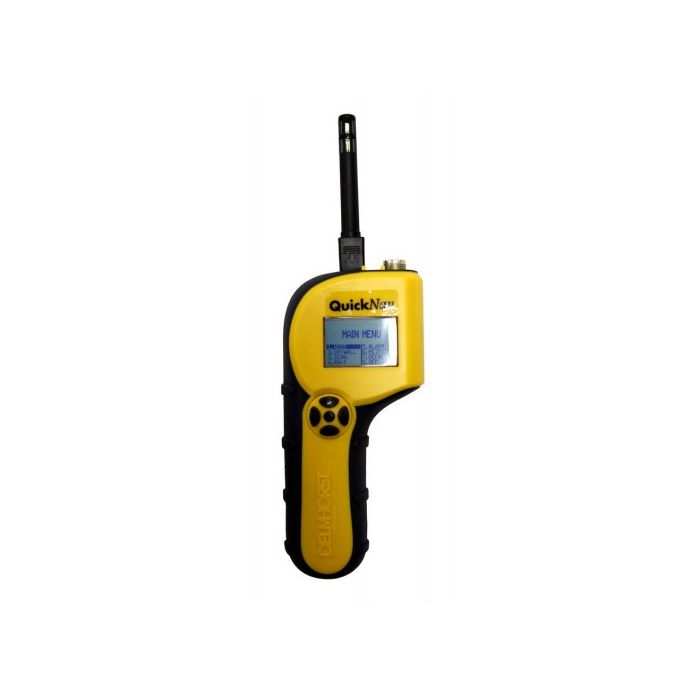

Delmhorst QuickNav Moisture Meter for Wood and Construction Materials (Model QUICKNAV/CP)

The Moisture Meter QuickNav, Delmhorst’s easy-to-use 3-in-1 meter, offers pin mode, scan mode, and thermo-hygrometer in a single handheld unit.

The QuickNav is widely recognized in building science studies and by industry publications for its accuracy in measuring wood and drywall moisture. Customers and professional reviewers consistently highlight its fast readings, reliable pin and scan modes, and ease of use compared to more complex models. Common applications include flooring installation, furniture manufacturing, dry kiln operations, and building inspections, where precise moisture content readings are critical for quality control and avoiding material damage.

The QuickNav will instantly calculate dewpoint, grains per pound (GPP), and vapor pressure for fast, accurate moisture measurement.

QuickNav offers the same high-performance pin mode, scan mode, and thermo-hygrometer as our industry-leading NavigatorPro, in an easier-to-use format. If you are looking for the versatility of a 3-in-1 meter and do not need to store and download readings, QuickNav is the ideal solution!

Features

• Pin penetration depth of 5/16”
• Scan depth of ¾”
• Correction scales for wood and drywall
• Moisture range of 6-60% on wood and 0.1-6% on drywall
• Scan range of 0-300 numerical reference scale
• RH/T Range of 0-100% RH
• Measures temperature from -40°F to 255°F with accuracy of +/- 1.8°F over -4°F to 158°F (range of -40°C - 124°C with accuracy of +/- 1°C over -20° to 70°C)
• Dewpoint: -40°F - 176°F
• Calculates Vapor Pressure
• Grains Per Pound (GPP) 0.1 – 3820 GPP (0.1 – 545 GPK)
• Backlit LCD screen
• Hold feature to maintain the displayed reading when testing hard-to-reach areas
• Adjustable alarm alerts when preselected moisture level is reached, allowing comparison to established dry standards
• Carrying Case
• 1-year warranty

QuickNav Package Variations

• QUICKNAV/BP - Basic Package: QuickNav with RH Sensor, Carrying Case, 2-E Electrode.
• QUICKNAV/CP - Complete Package: QuickNav with RH Sensor, Carrying Case, 2-E Electrode, 26-ES Electrode, and 21-E Electrode.

Accessories

RH/T-S1 - Detachable relative humidity/temperature sensor included with Navigator Pro and HT-4000. Can be used to obtain ambient RH/T readings. Available individually or in packs of 5 as RH/T-S1/5.

QuickNav Electrodes

Delmhorst offers a wide range of durable electrodes, all compatible with any Delmhorst moisture meter. Below are electrodes commonly used with QuickNav:

26-ES

The 496 contact pins penetrate 1 1/8” and are insulated along the shank, exposing only the tips for precise moisture readings at varying depths. Ideal for:

• Flooring installers: Penetrates through flooring to plywood sub-floor or concrete.
• Dry kiln operators: Identify moisture gradients to monitor drying patterns.
• Furniture manufacturers and craftsmen: Access high-density hardwood that short pins cannot reach.

Also available as the 26-ED, which includes a gauge to measure pin penetration depth.

21-E

Features 608 insulated pins that reach a maximum penetration of 3-1/4". Perfect for roofs, insulation, or EIFS. Also available as 21-E/001 with 6" penetration or 21-ET with a tapped handle for hard-to-reach areas.

22-E

Includes A-111 uninsulated pins for 1 1/2" penetration, suitable for plaster, masonry, and wood. Accepts 496 insulated pins for 1 1/16” penetration. Available as 22-ET with tapped handle for difficult access areas.

19-E/STC

Features two 5'' long blades bent at a 35° angle, coated in Teflon except for tips. Ideal for checking behind trim and baseboard molding.

2-E/SPLIT

Makes moisture testing in hard-to-reach areas simple. Attach any length metal probe to the alligator clips and test behind toe kicks, through drywall, or in areas where standard pins are too short.

To support comprehensive moisture analysis across materials testing workflows, consider the Tramex Concrete Moisture Meter (CMEX5), which delivers non‑destructive quantitative moisture assessment for concrete floors and slabs in accordance with industry standards. For applications requiring connectivity and extended data logging, the Tramex Concrete Moisture Encounter X2 enhances on‑site evaluation with Bluetooth integration and multiple measurement modes, enabling detailed reporting and auditing. Additionally, moisture mapping in complex structures can be addressed with the Tramex Skipper 5 Moisture Meter for Boats, a specialized tool for detecting moisture in marine and composite materials while maintaining precision and durability for industrial inspection tasks.

Q&A

What surfaces can the QuickNav measure?

The QuickNav accurately measures moisture in wood, drywall, plaster, masonry, and insulation. Specific electrodes allow for deep penetration in high-density or hard-to-reach areas.

Does the QuickNav store readings?

No, the QuickNav provides instant measurements for immediate analysis but does not store or download data. For data logging, the NavigatorPro is recommended.

How accurate is the temperature measurement?

The QuickNav measures temperature from -40°F to 255°F (-40°C to 124°C) with an accuracy of ±1.8°F (±1°C) within the standard ranges.

Which package should I choose?

The Basic Package (QUICKNAV/BP) is suitable for general use with wood and drywall. The Complete Package (QUICKNAV/CP) includes additional electrodes for specialized applications like roofing or thick hardwood.

Can I use QuickNav in tight or difficult areas?

Yes, electrodes such as 2-E/SPLIT and 21-ET are designed to reach confined spaces and behind surfaces that standard pins cannot access.
