Heating and cooling circulating bath / with mx temperature controller - MX20R-30 - 20 Liter Refrigerated Circulator -30°C
$USD 5,261.00
MX20R-30-A11B
for accurate temperature regulation of appropriate liquids in a container
- 12 months limited warranty
- 7 Liter or 7 Liter Low-Profile, Temperature Range -20° to +135°C
- 15 or 20 Liter, Temperature Range -30° to +135°C
- User-adjustable high and low-temperature limits and alarms

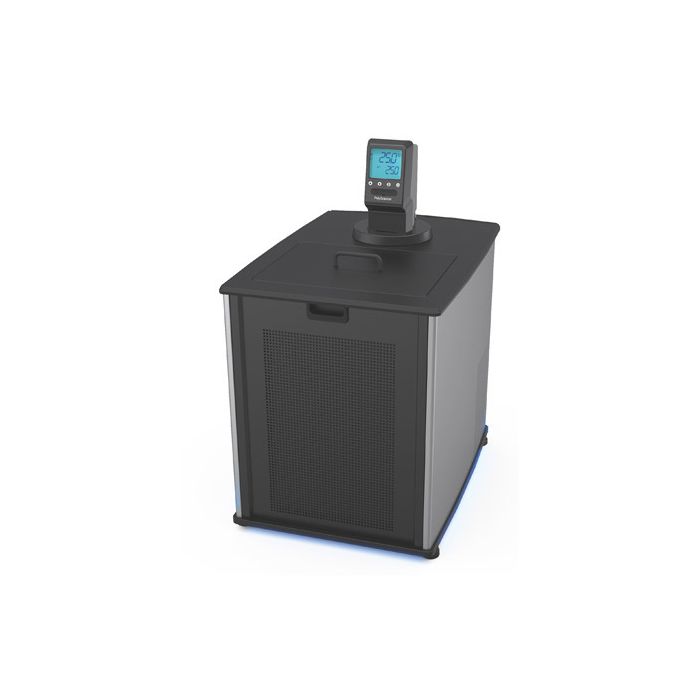

Model: MX20R-30 - 20 Liter Refrigerated Circulator, -30°C
PolyScience Circulating Bath with MX Temperature Controller. It is intended for the precise temperature control of suitable liquids in a reservoir. Extremely easy to use and maintain, it combines design innovation with highly intuitive operation to deliver convenient and versatile liquid temperature control for a wide range of applications.
| Working Temperature Range °F | -22° to 275° |
| Working Temperature Range °C | -30° to 135° |
| Nominal Cooling Capacity @ +20C (W) | 915 |
| Reservoir Capacity (gallons) | 5.28 |
| Reservoir Capacity (liters) | 20 |
| Reservoir/Tank Material | Stainless Steel |
| Reservoir Cover | Included |
| DuraTop | Yes |
| LidDock | Yes |
| Cleanable Air Filter | Yes |
| Working Access (L x W x D) (inches) | 9.85 x 12.45 x 5.5 in |
| Working Access (L x W x D) (cm) | 25 x 31.6 x 14 cm |
| Temperature Stability °F | ±0.13° |
| Temperature Stability °C | ±0.07° |
| Display | 3.25" LCD |
| Display Resolution (Set) | 0.1 |
| Display Resolution (Read) | 0.1 |
| Pump Type | Pressure |
| Pump Speed | One |
| Process Connections | 1/2" O.D. Barbed Tubes |
| Flammability Class (DIN 12876-1) | I (NFL) |
| Over-Temperature Protection / Failsafe Heater Control | Yes |
| Low Liquid Level Protection | Yes |
| WhisperCool Environmental Control Technology | Yes |
| Cool Command Refrigeration Technology | Yes |
| Reservoir Drain | Yes |
| Maximum Ambient Temperature °F | 95° |
| Maximum Ambient Temperature °C | 35° |
| Overall Dimensions (L x W x H) (inches) | 24 x 16.5 x 28 in |
| Overall Dimensions (L x W x H) (cm) | 61 x 41.9 x 71.1 cm |
| Refrigerant | R404A |
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) | 124.0 |
| Shipping Weight (kilograms) | 56.2 |
| Price | $USD 5,261.00 |
|---|
